Fezz Equinox DAC

Product Details

Brand: Fezz Audio
Model: Equinox DAC (empowered by LampizatOr)
Type: Tube DAC (digital-to-analogue converter)
Condition: New
Finishes: Big Calm, Black Ice, Burning Red, Evergreen, Moonlight, Republika and Sunlight
Origin: Poland

Product Description

The Fezz Equinox is a tube DAC built by Fezz Audio to a design by LampizatOr, the Polish specialist in tube DACs. The result is a converter that combines the detail of digital sources with the warmth, spaciousness and natural timbre tubes are known for.

For conversion, the Equinox uses the highly regarded Burr-Brown PCM1794 chip, without oversampling. The analogue signal is then amplified by a 12AU7 (ECC82) tube, the only tube in the signal path. The tube is visible through the glass top panel and can be replaced without tools, so you can fine-tune the sound with another tube from the same family if you wish.

With a USB input up to 384 kHz / 32 bit, one coaxial and two optical inputs, it connects easily to a streamer, computer, CD transport or TV. The power supply is built around a high-quality toroidal transformer from Fezz’s sister company Toroidy.

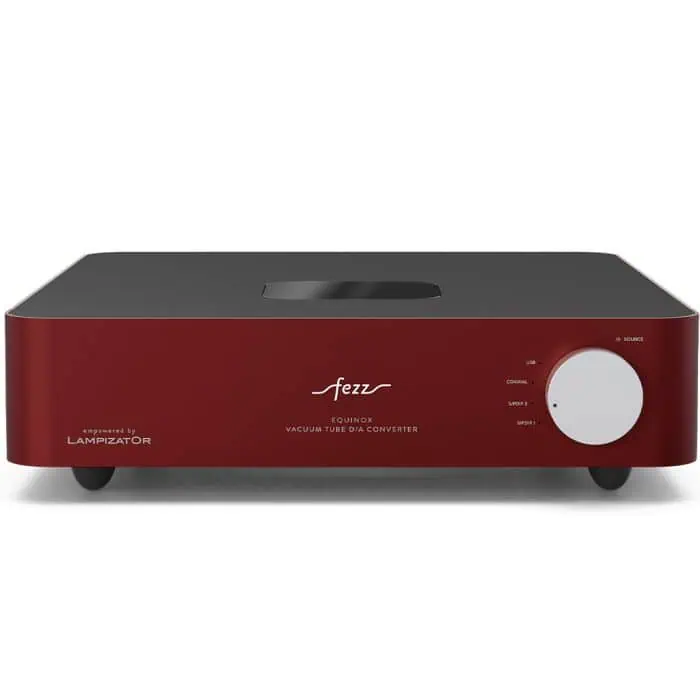

The Equinox features Fezz’s signature design with rounded corners and a glass top, and is available in seven finishes: Big Calm (red, pictured), Black Ice, Burning Red, Evergreen, Moonlight, Republika and Sunlight.

Specifications

• Type: tube DAC designed by LampizatOr
• DAC chip: Burr-Brown PCM1794 (non-oversampling)
• Tube: 1 × 12AU7 / ECC82 in the analogue output stage

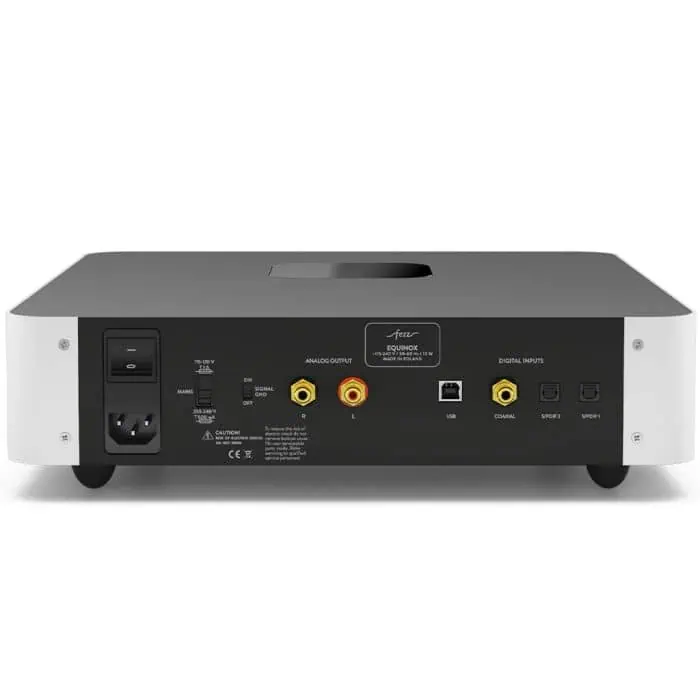

• Digital inputs: 1 × USB-B, 1 × coaxial, 2 × optical (Toslink)
• USB: up to 384 kHz / 32 bit
• S/PDIF (AKM4118 receiver): 32–192 kHz / 16–24 bit
• Analogue output: 1 × RCA (unbalanced)
• THD: < 0.05%
• Power consumption: approx. 9 W
• Dimensions: 355 × 380 × 95 mm
• Weight: approx. 8 kg
