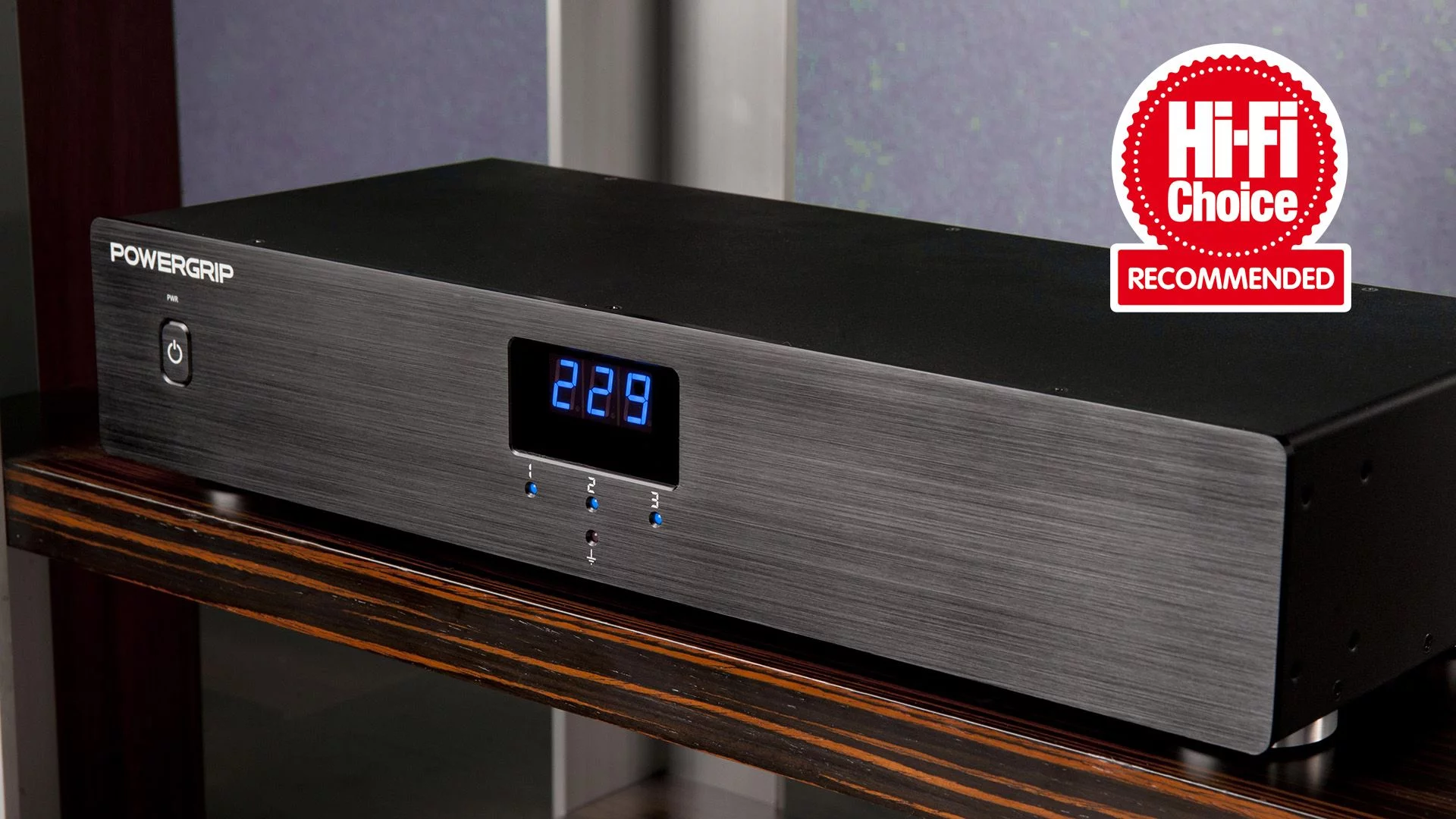

With a sleek design standing only 80 mm high and 185 mm deep, the YG-2 is crafted to integrate seamlessly into almost any system. This compact model provides six outlets while delivering the same impressive power capacity as the larger YG-1 model.

HIGH PERFORMANCE CAPACITY

The YG-2 can supply a power output of 3680 Watts at 230 V and 16 Amps. This capacity, equivalent to that of the top-tier YG-1, is more than adequate for cleaning and protecting power supplies in high-quality stereo or home cinema systems. The outlets are divided into three groups for optimal flexibility.

USER-FRIENDLY DESIGN

An intuitive touch-sensitive control panel on the front allows easy management of various functions and adjustments. You can switch between groups or view critical information, such as voltage or distortion levels.

TECHNICAL SPECIFICATIONS

• Input Voltage: 190 – 256 V
• Maximum Capacity (at 230 V): 3680 W
• Nominal Current: 16 A
• Power Consumption: 10 W (with groups on), 1 W (with groups off)
• Protected Outlets: 6 AC sockets with analog, digital, and high-current lines
• COAX Connection: 1 line

SAFETY FEATURES

• Emergency Limits: Voltage ≤ 190 ± 4 V / ≥ 256 ± 4 V
• Peak Current: Up to 65,000 A

SETTINGS AND CONTROL

• Manual Control: Multifunctional knob and touch sensor on the front panel
• On/Off Scenarios: Adjustable delay between outlet groups
• 12V Trigger: Input and output
• RS232 Integration: Compatible with Control4, Crestron, AMX, etc.

PACKAGE CONTENTS

• AC Power Cable: 1.5 m (optional 3 m)
• 19” Rack Mounting Kit: Included

GENERAL INFORMATION

• Front Panel Material: 4 mm brushed aluminum
• Dimensions (W x H x D): 440 x 80 x 185 mm
• Weight: 4.8 kg
