Product details

Product: Akai AM-2800 Stereo Integrated Amplifier
Color: Silver

Product description

The Akai AM-2800 is a vintage stereo integrated amplifier, produced between 1976 and 1977. This model is known for its excellent build quality and powerful audio performance. It offers a power of 80 watts per channel at 8 ohms, and has a frequency range of 20Hz to 20kHz. With a total harmonic distortion of only 0.08%, it delivers clear and accurate sound. This amplifier has a damping factor of 60 and is equipped with inputs for MM (moving magnet) phono cartridges, as well as line and DIN inputs.

Cosmetic description

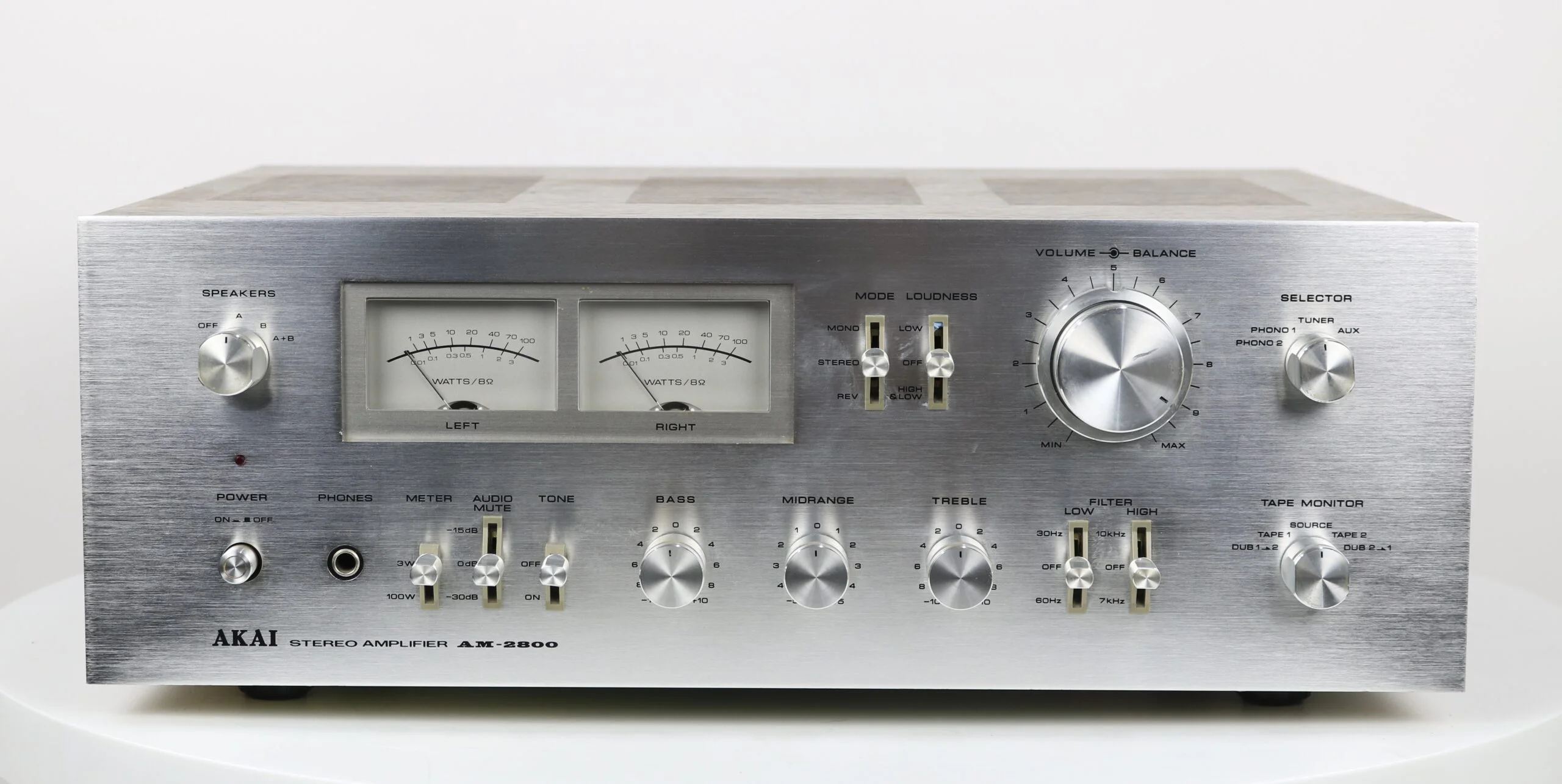

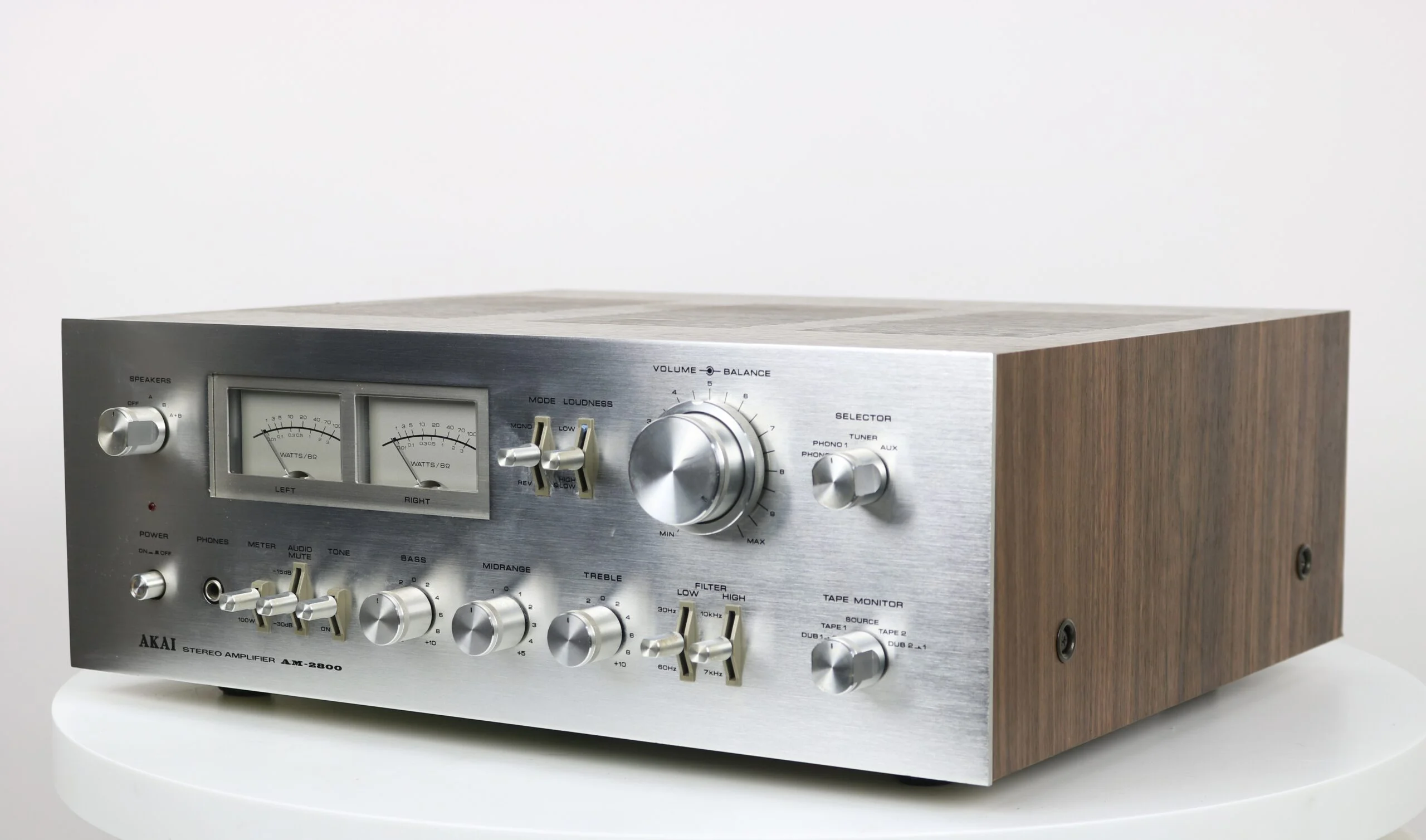

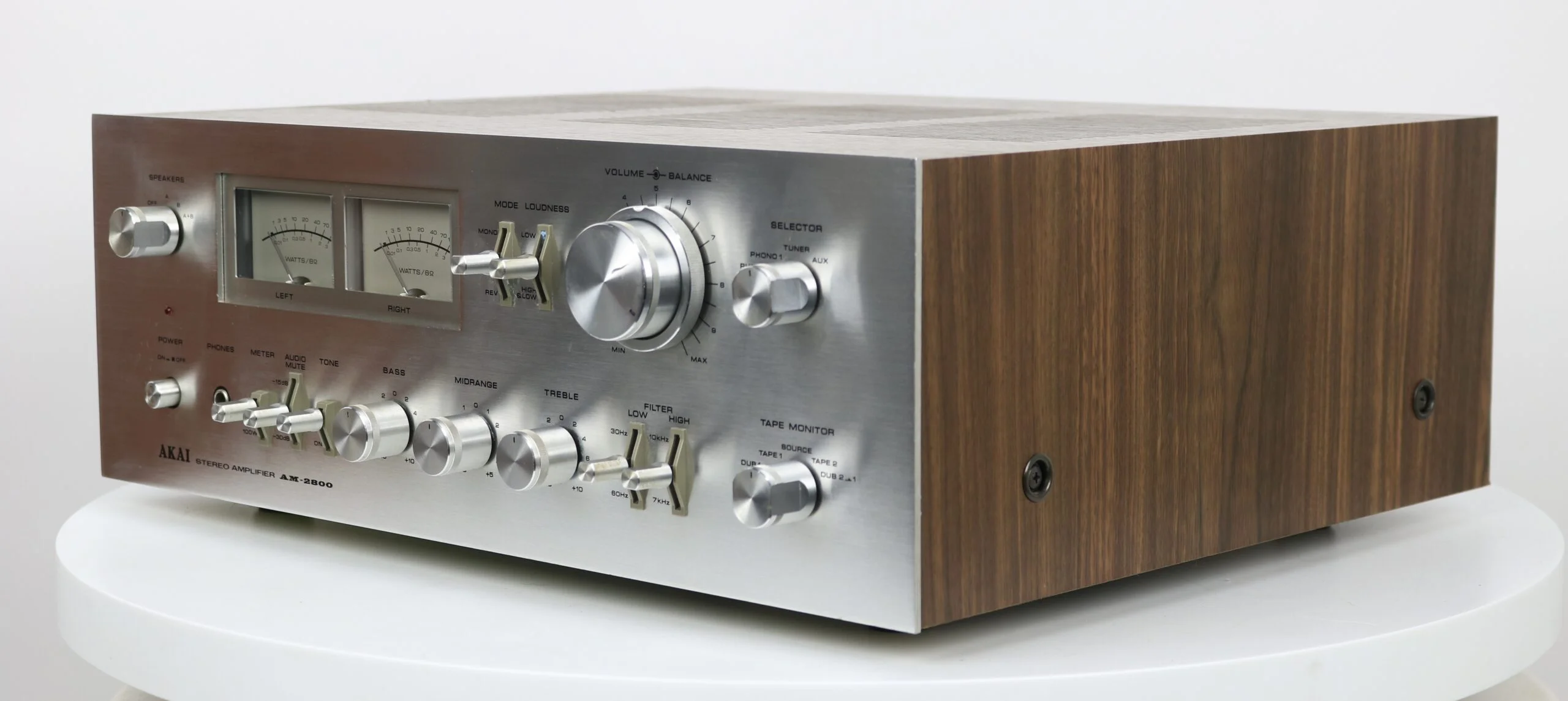

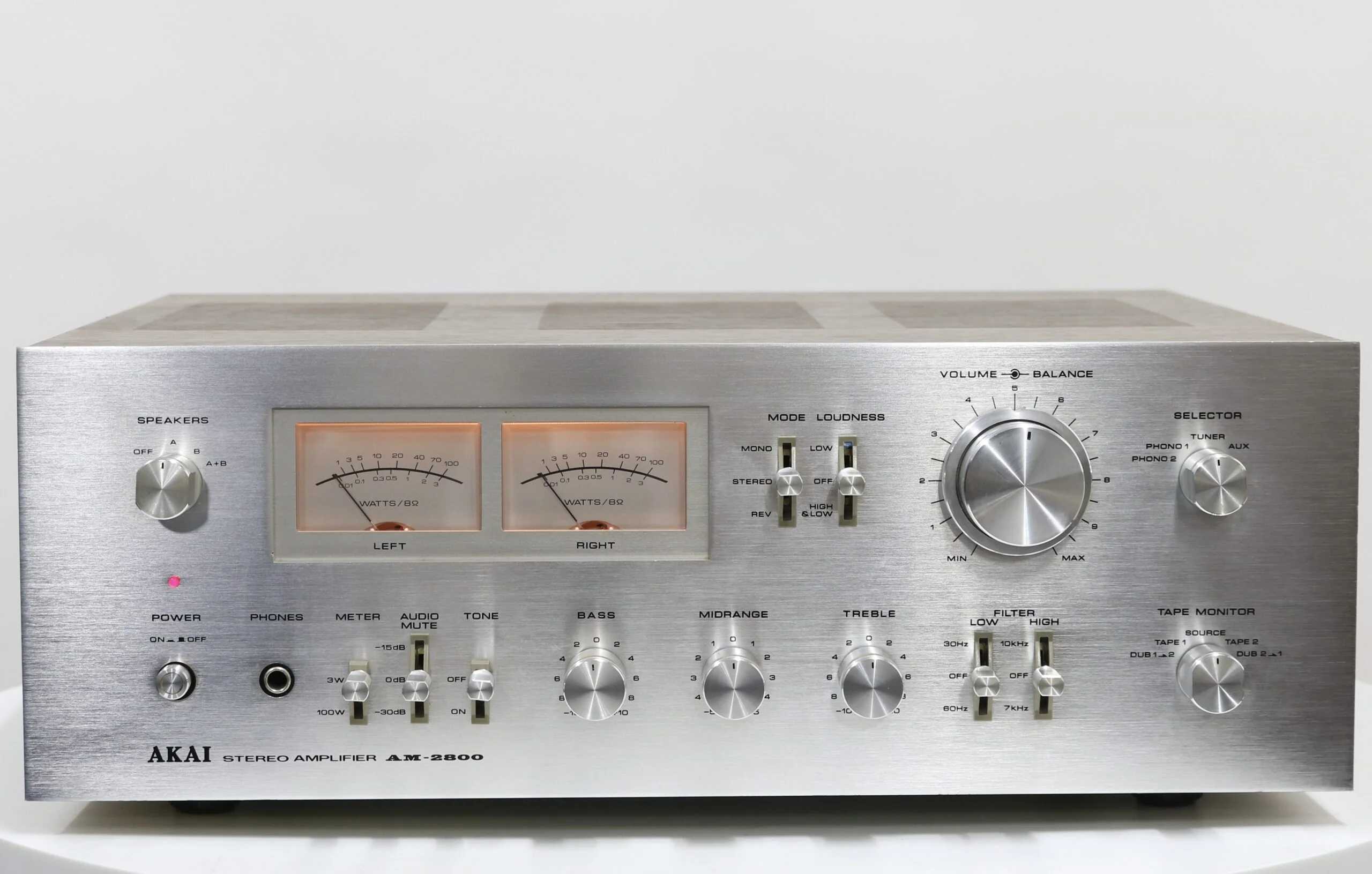

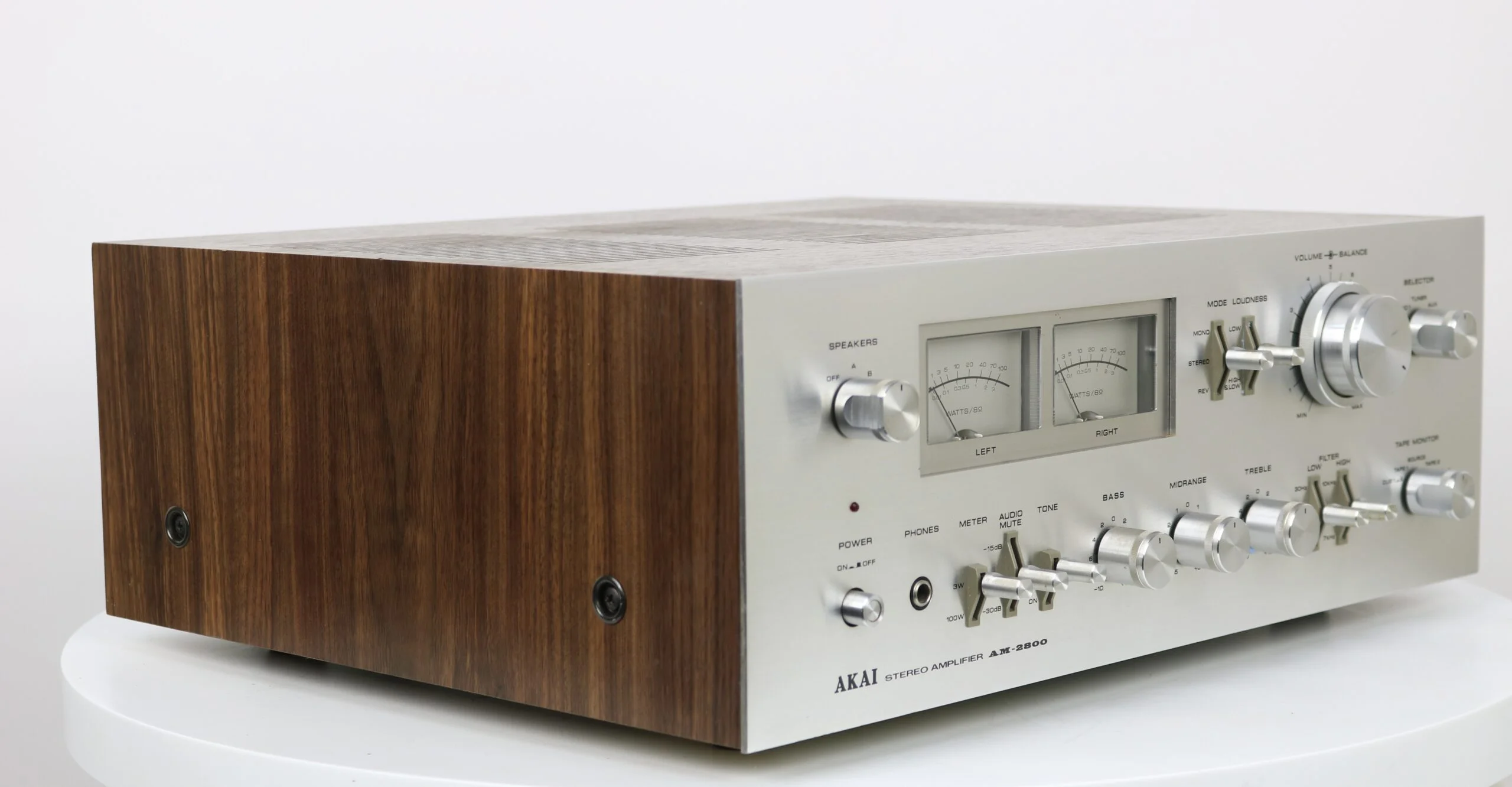

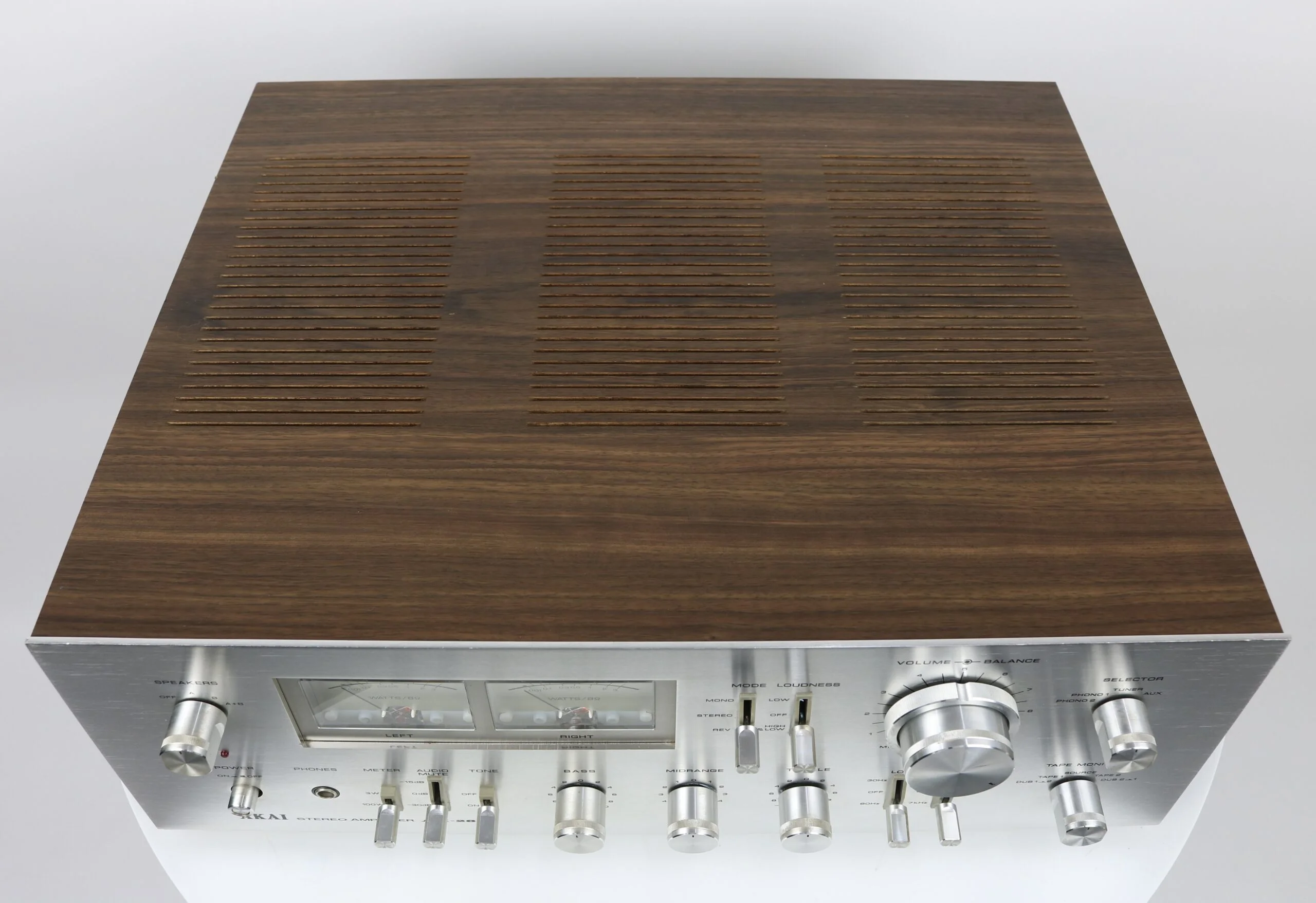

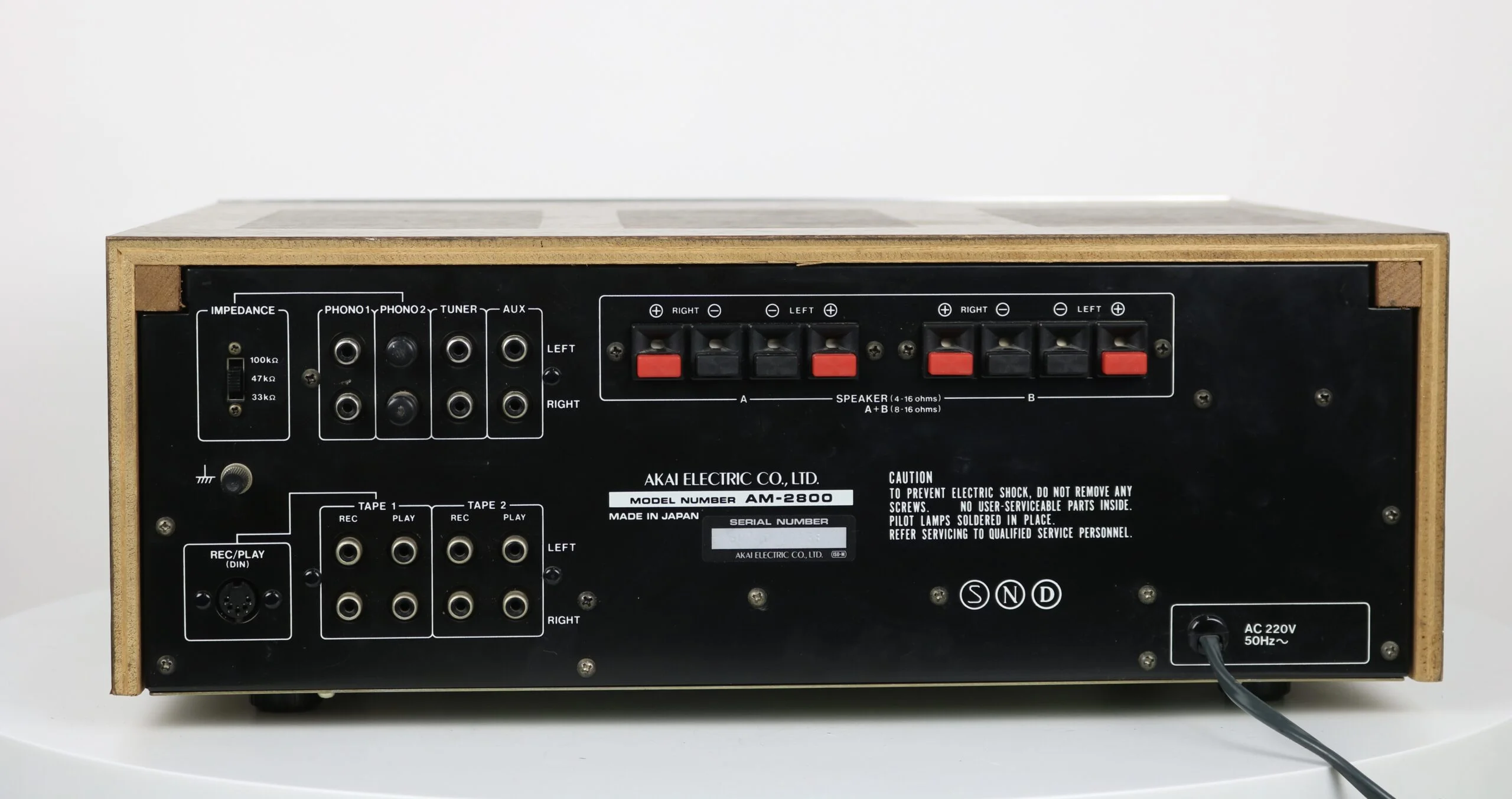

The unit is in nice condition with some signs of wear, which are clearly indicated in the photos.

Functional notes

The Akai AM-2800 is a high-quality integrated amplifier, known for its robust build quality and excellent audio performance. This amplifier is designed for use in high-fidelity audio setups.

Specifications

Output power: 80 watts per channel at 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.08%
Damping factor: 60
Input sensitivity: 3mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 75dB (MM), 95dB (line)
Channel separation: 55dB (MM)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 440 x 165 x 396 mm
Weight: 12.9 kg
