Topping E70 BK

Product Details

Product: Topping E70 DAC
Color: Black (BK)

Product Description

The Topping E70 BK uses a high-performance ESS DAC chip to deliver a neutral, detailed, and dynamic sound. This converter supports high-resolution audio formats up to 32-bit/768kHz and DSD512. With Bluetooth 5.1 and support for LDAC, aptX HD, and AAC, wireless streaming with excellent audio quality is possible. The device features multiple digital inputs (USB, optical, coaxial) and both balanced (XLR) and unbalanced (RCA) outputs. Operation is handled via a multifunctional control knob and is supported by the included remote control. The E70 is ideal as a standalone DAC or as part of a high-quality audio system.

Cosmetic Description

The DAC features a robust aluminum chassis with a matte black finish and a sleek glass front panel. The volume knob with red accent ring gives the unit a stylish, modern look.

Functional Notes

The E70 delivers exceptional measurable audio performance with an extremely high signal-to-noise ratio and ultra-low distortion. Thanks to selectable output levels (2.1V or 2.5V via RCA, 4.2V or 5V via XLR), the DAC can be easily adapted to various amplifiers or active speakers. It comes equipped with digital filters for both PCM and DSD signals. A 12V trigger input/output is available for synchronizing with other devices.

Specifications

• DAC Chip: ESS Sabre ES9028Pro

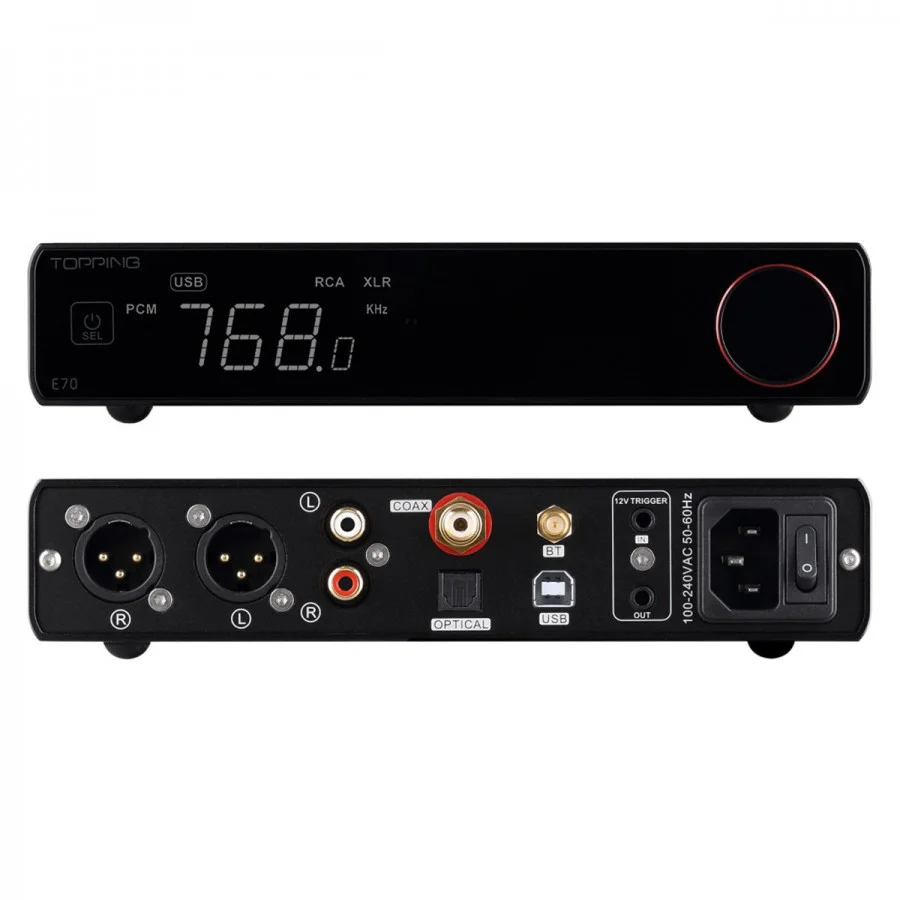

• Inputs: USB-B, optical (TOSLINK), coaxial (SPDIF), Bluetooth 5.1

• Outputs: RCA (2.1V/2.5V), XLR (4.2V/5V)

• Supported Formats: PCM up to 32-bit/768kHz, DSD up to DSD512

• SNR: 132 dB

• THD+N: 0.00006%

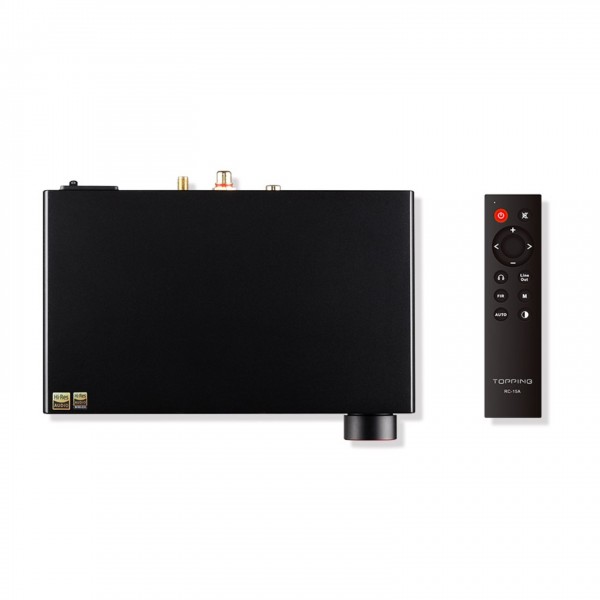

• Control: Volume knob and remote control

• Filters: Multiple digital filters for PCM and DSD

• Trigger: 12V trigger in/out

• Dimensions: 200 x 138 x 44 mm

• Weight: approx. 1 kg

• Color: Black
