McIntosh C34V

Product Details

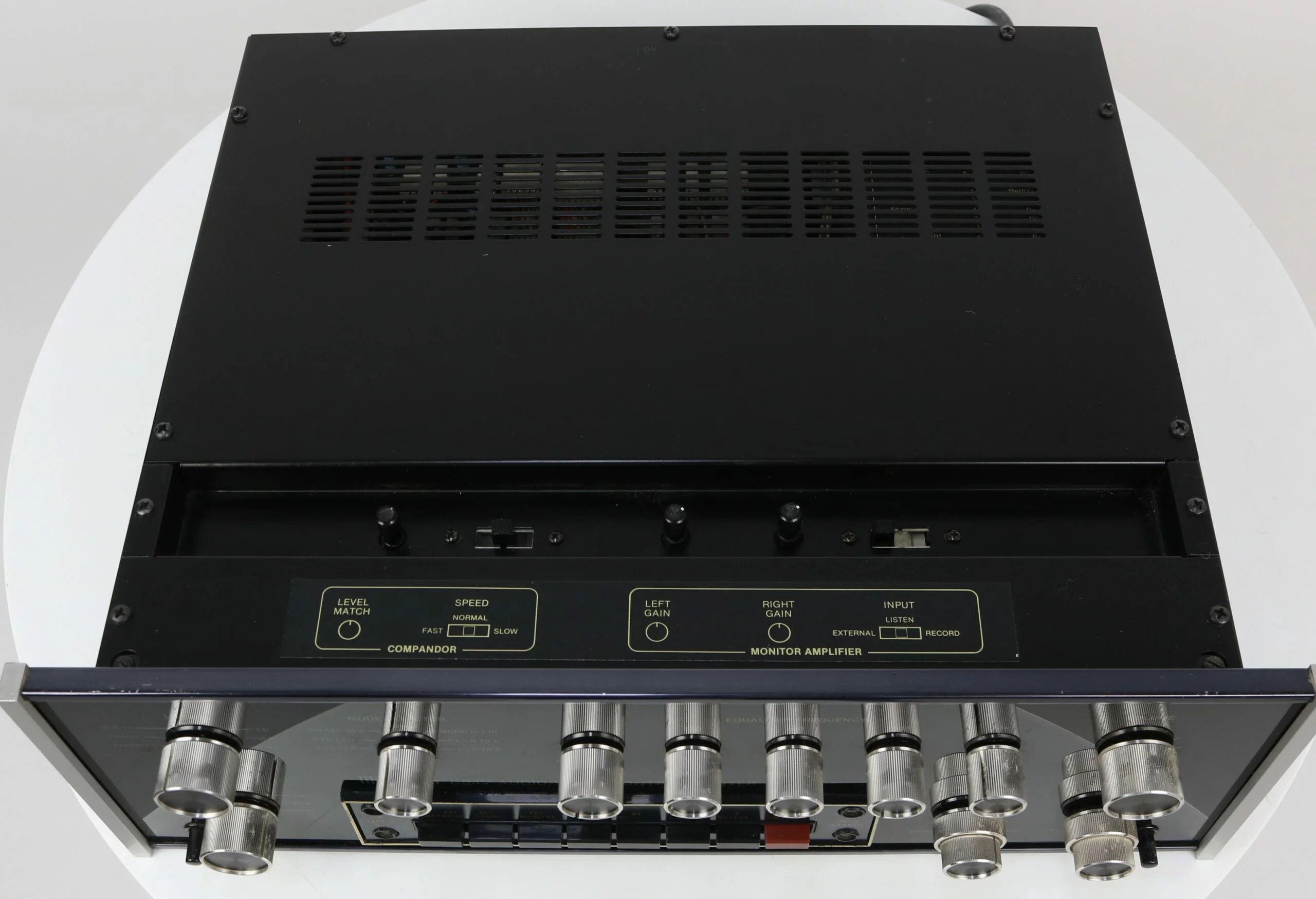

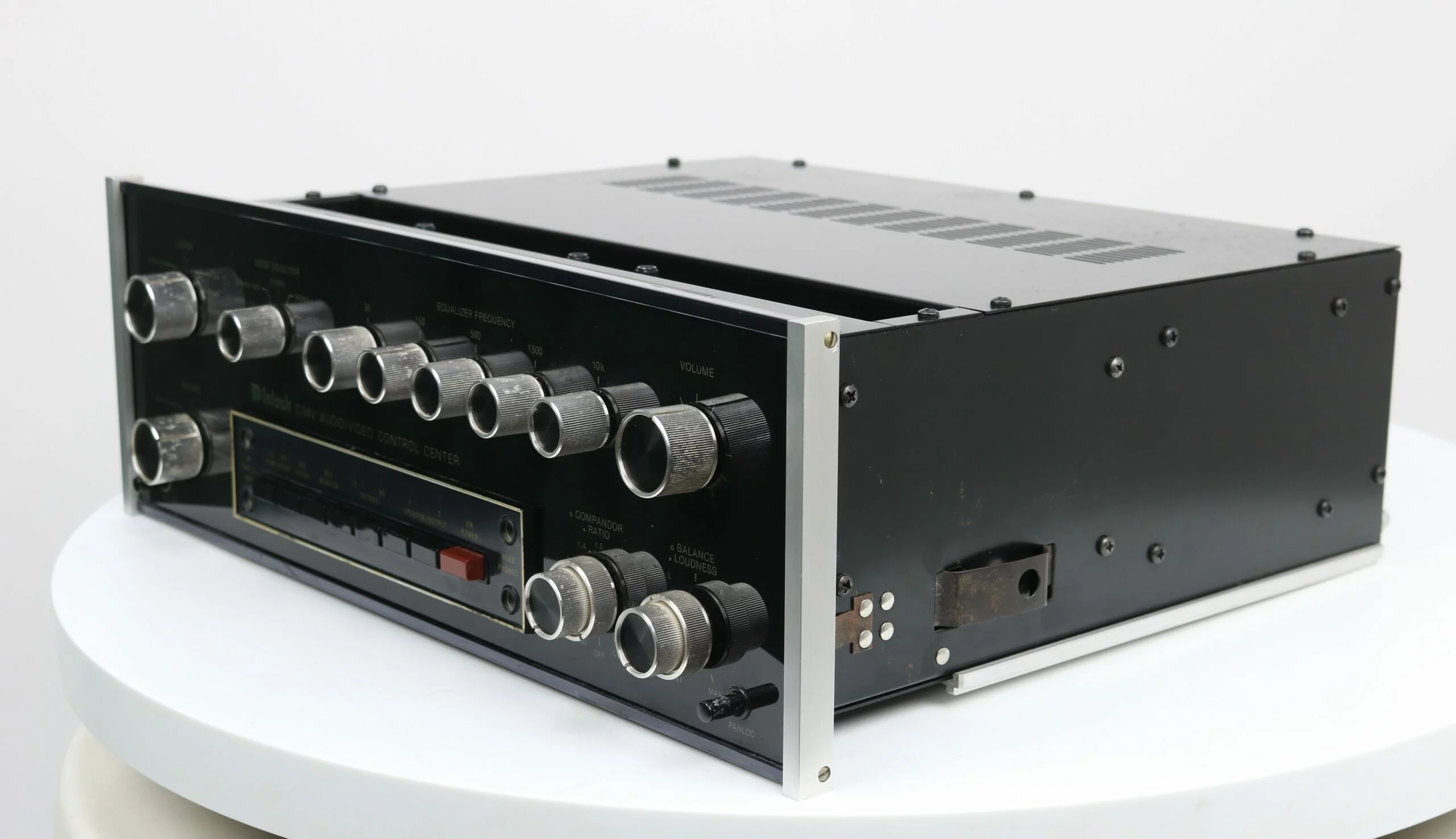

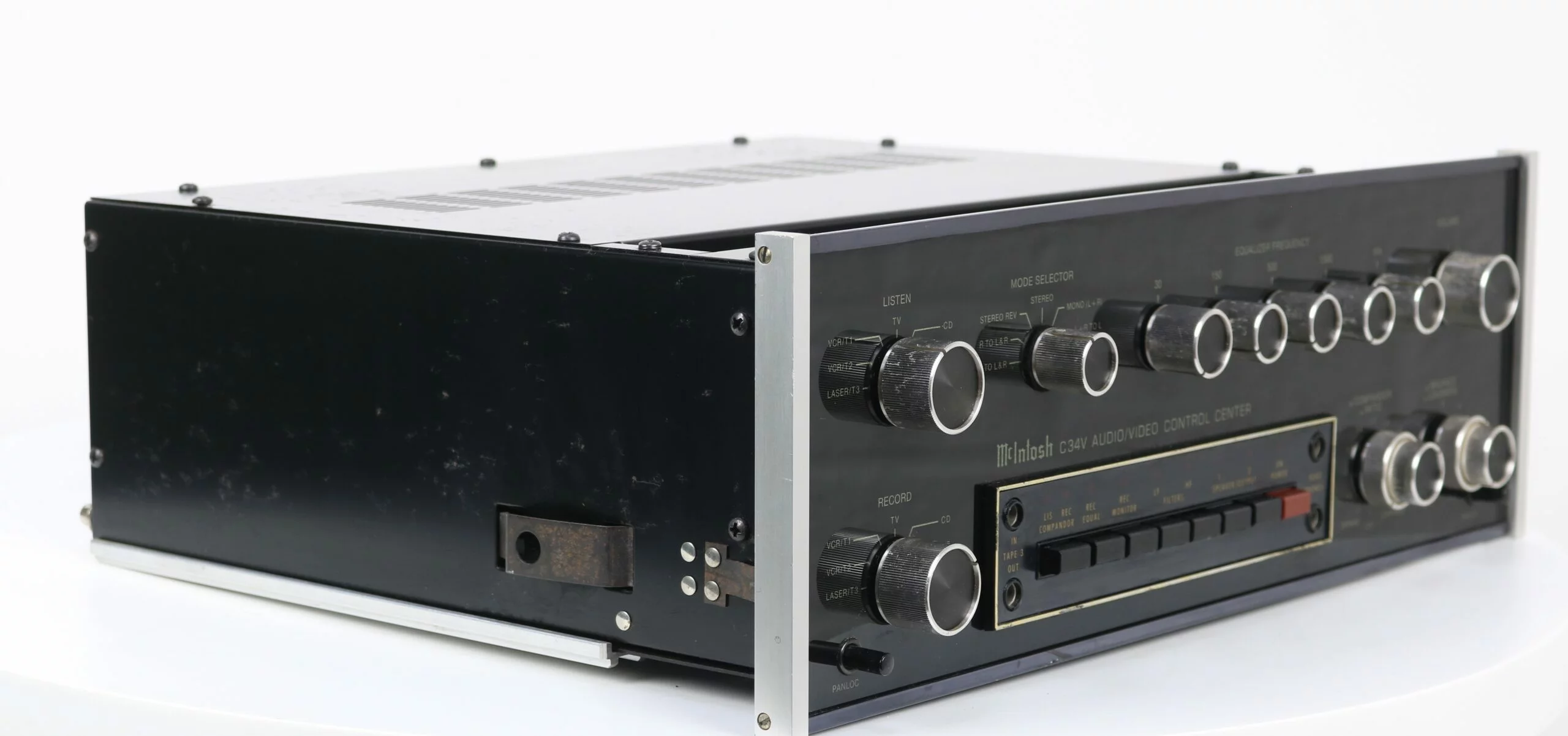

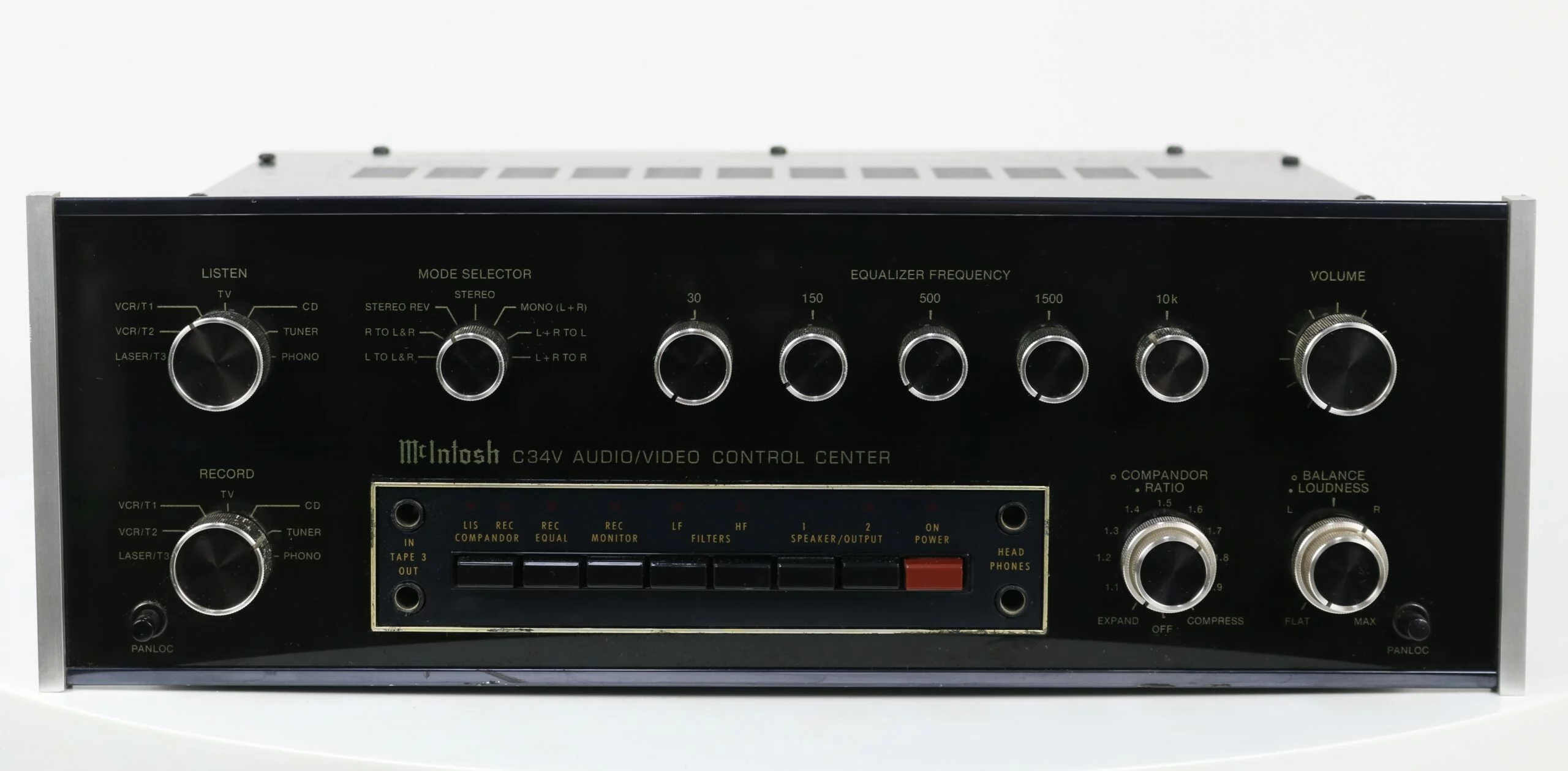

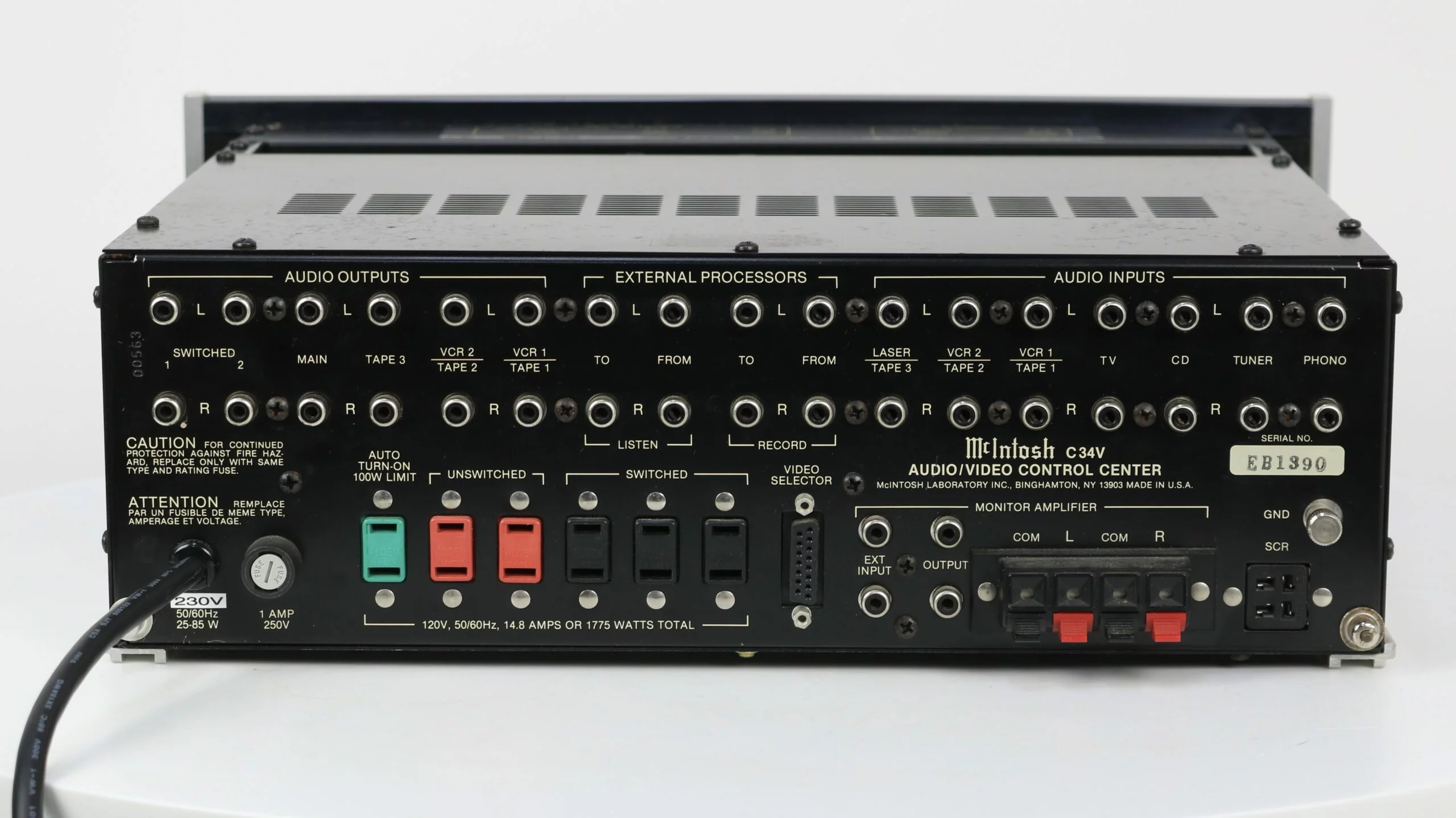

Product: McIntosh C34V 2-Channel Solid State Audio/Video Control Center
Color: Black

Product Description
The McIntosh C34V is an iconic audio/video control center designed for optimal performance in both audio and video applications. Manufactured between 1985 and 1992, this preamplifier combines versatility with high-quality components. Featuring a 5-band equalizer and built-in compensation, the C34V provides comprehensive control over the sound. When paired with the MVS-1 video switcher, video images can be selected without affecting the audio. The preamplifier supports both phono and high-level inputs, allowing maximum flexibility for connecting various audio sources.

Cosmetic Description
The unit shows light signs of use, which have been carefully photographed and clearly displayed.

Functional Notes

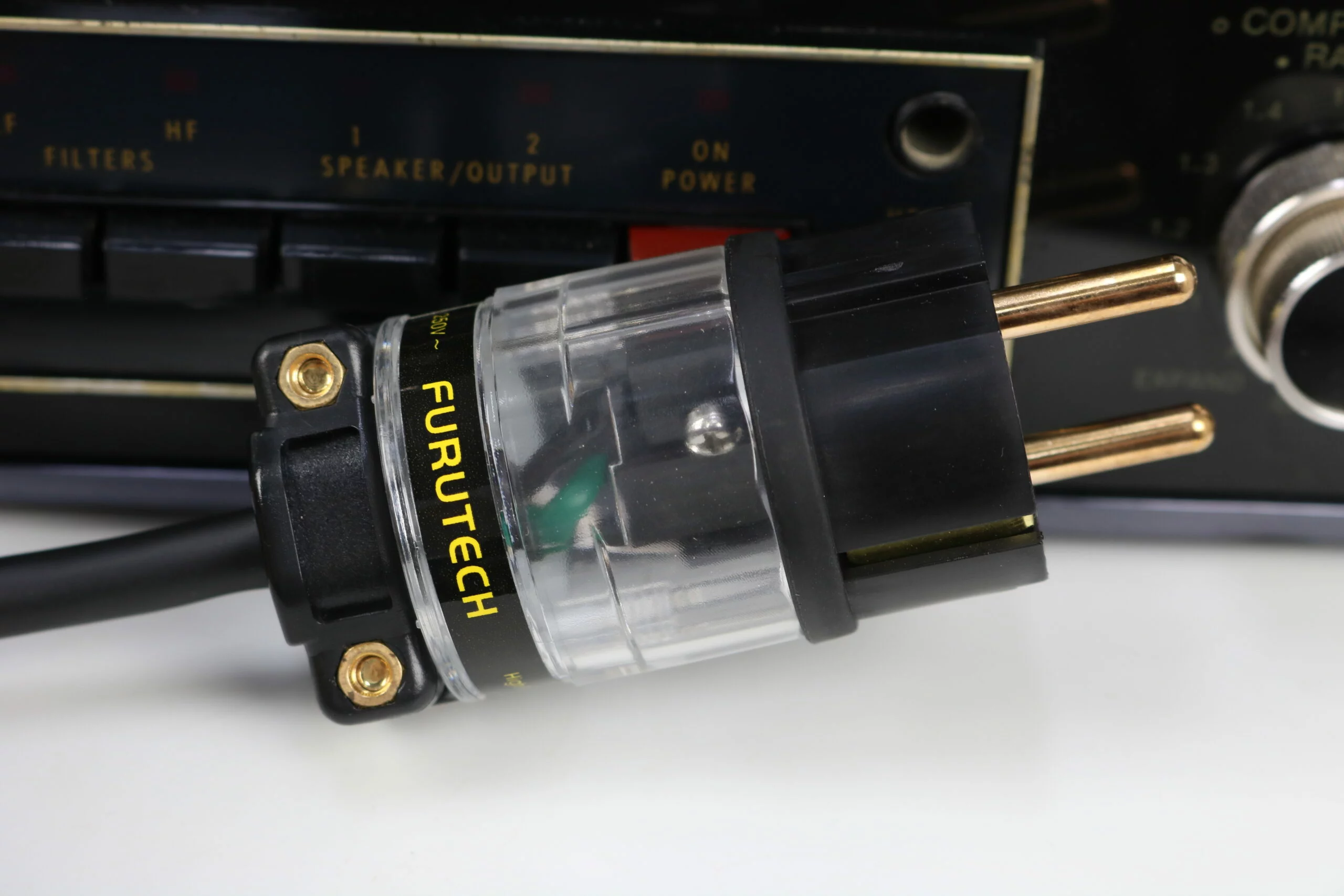

This unit has been thoroughly inspected and serviced by an authorized McIntosh service center and is in excellent working condition. An upgrade has been performed with a thicker power cable and a Furutech plug. The product comes with a one-year warranty.

Specifications

• Frequency Response: 20 Hz – 20 kHz (+0 -0.5 dB)
• Maximum Output Voltage: 10 V
• Total Harmonic Distortion: 0.01% or less
• Signal-to-Noise Ratio: 100 dB or more (high-level)
• Input Impedance: Phono: 47k Ω, high-level: 50k Ω
• Equalizer: ± 12 dB at center frequencies of 30 Hz, 150 Hz, 500 Hz, 1.5 kHz, 10 kHz
• Dimensions: Width 406 mm x Height 138 mm x Depth 330 mm
• Weight: 11.8 kg

Included

• McIntosh C34V unit
• Power cable
• Original manual
