Eversolo DMP-F2

Product Details

Product: Eversolo DMP-F2 Power Amplifier
Color: Black

Product Description

The Eversolo DMP-F2 is a 2-channel Class D power amplifier, developed in collaboration with Starke Sound in California. Equipped with the NS600 amplifier module, this amplifier delivers exceptional audio performance, featuring a high sampling rate of 600 kHz and an optimized signal structure for clean and dynamic sound reproduction.

The innovative SAPS (Switching Audio Power Supply) minimizes noise and enhances dynamic performance. Thanks to bridge mode, the DMP-F2 can be configured in both stereo and mono modes, making it highly versatile for various audio setups.

Cosmetic Description

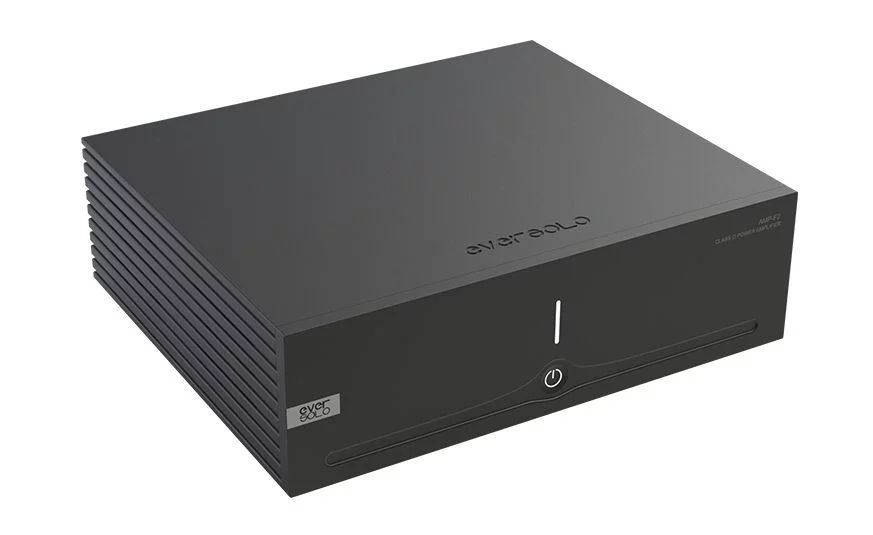

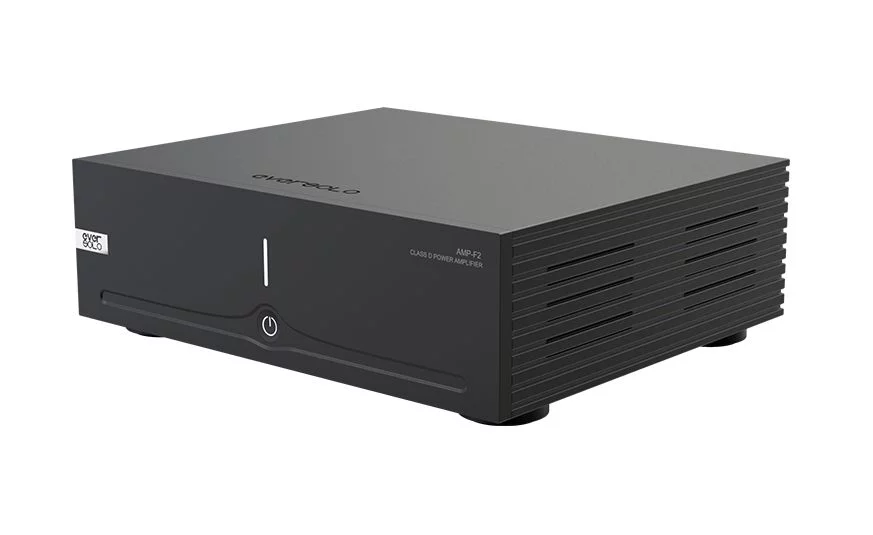

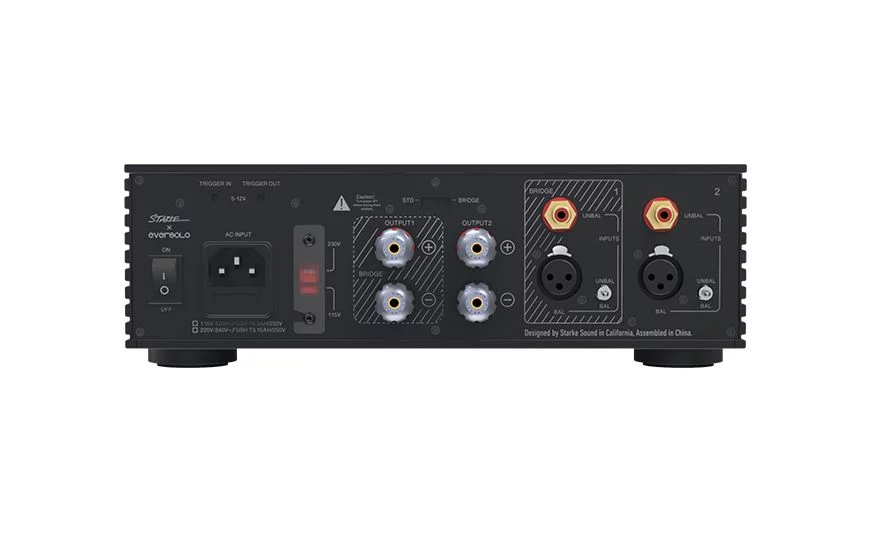

The Eversolo DMP-F2 boasts a modern and sleek design, featuring a sturdy metal chassis that provides optimal shielding against interference. The front panel is minimalist with a premium anodized finish and subtle branding details. The rear panel includes XLR and RCA inputs, as well as robust speaker terminals for a stable and secure connection.

Functional Notes

• 2-channel Class D power amplifier featuring the NS600 module from Starke Sound
• 280W RMS per channel (4Ω) with low distortion
• 450W RMS in bridge mode (2Ω) with THD+N < 1%
• 600 kHz sampling rate for detailed and dynamic sound reproduction
• SAPS (Switching Audio Power Supply) reduces noise and improves efficiency
• Bridge mode for flexible configuration as a stereo or mono amplifier
• PurePath Ultra-HD technology ensures ultra-low distortion across the full frequency range
• XLR and RCA inputs for compatibility with various audio sources
• Robust speaker terminals for a secure and stable connection
• Compact and efficient design with a shielded chassis to minimize signal interference

Specifications

• Type: Class D power amplifier
• Channels: 2
• Output Power:
  • 280W RMS per channel (4Ω)
  • 450W RMS in bridge mode (2Ω)
• Sampling Rate: 600 kHz
• Power Supply: 600W switching power supply
• Distortion (THD+N): <1%
• Bridge Mode: Yes
• Inputs: XLR, RCA
• Outputs: Speaker terminals (binding posts)
• Dimensions: [Insert dimensions]
• Weight: [Insert weight]

Included

• Eversolo DMP-F2 Power Amplifier
• Power cable
• User manual
