Product details

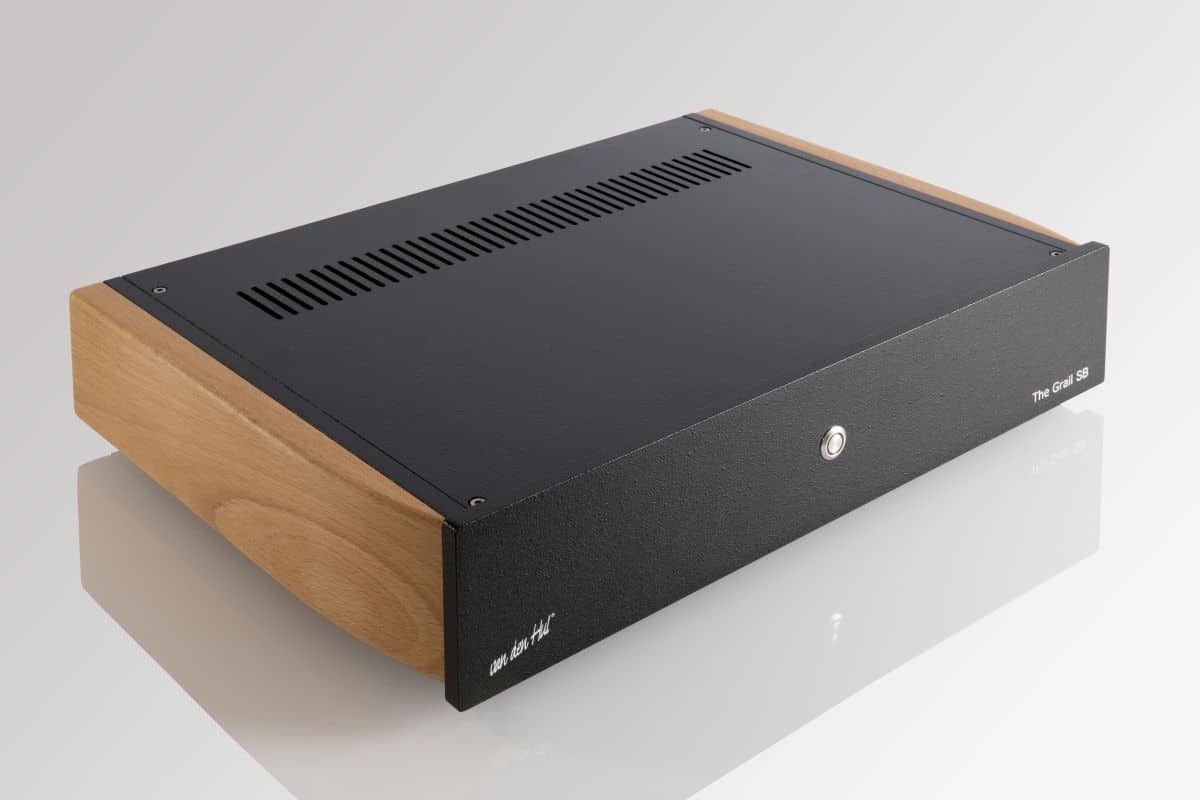

Product: The Grail SB
Type: Balanced phono preamplifier
Origin: Europe
Use: High-end analog vinyl playback
Included: External power transformer, standard mains power supply
Product description

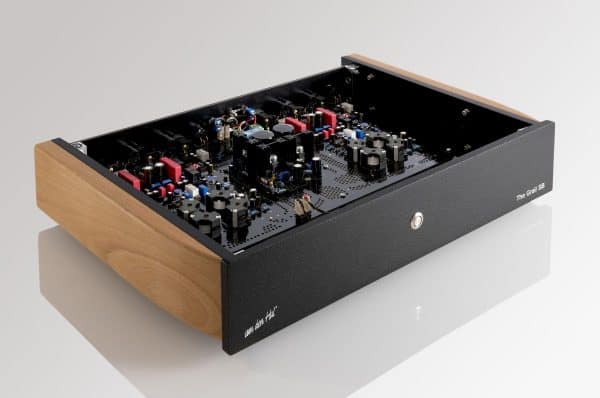

The Grail SB was created with a singular goal: to reproduce vinyl in the most musical and natural way, free of technical coloration. RIAA correction is achieved using only coils—completely eliminating capacitors from the signal path—for an open and lifelike sound. The circuit boards are made from a specialized material with gold-plated traces, mounted on a vibration-free platform, and supported by wooden damping feet to prevent mechanical energy buildup.
The MC input automatically adjusts to nearly any low-output cartridge—no need to change resistors or settings. Just plug in and play, even at the highest level. For added flexibility, the unit features three inputs (two MC and one MM or high-output MC), selectable gain settings, and an external shielded power supply for maximum noise isolation.
The result? A transparent, detailed, and fluid soundstage with a breathtakingly natural sense of space. A dream companion for any premium turntable and cartridge.
Specifications
• Mains voltage: 115/230 V, 50/60 Hz
• Power consumption: 7 Watts
• Operating temperature: 15 – 30°C (dry indoor environments only)
• Max. output voltage (undistorted): 25 Vpp
• Output impedance: 330 Ohms resistive
• Inputs: 3 total (2x MC, 1x MM or high-output MC)
• External power supply with Gyrator circuits per amplification stage
Gain settings & sensitivity
MM input:
– 33 dB: 5.6 mV
– 41 dB: 2.2 mV
– 50 dB: 0.8 mV
– Impedance: 47 kOhm / 50 pF
MC input:
– 56 dB: 0.4 mV
– 64 dB: 0.15 mV
– 73 dB: 0.05 mV
– Impedance: Automatically adapted between approx. 20 – 1500 Ohms
Made to order
This product is custom-built for you once your order is placed. Please allow for a slightly longer delivery time. This made-to-order process ensures maximum attention to detail and build quality.
Have questions about the production process or estimated delivery time? Don’t hesitate to contact us—we’re happy to help.
