Creek OBH-18 MM

Product details

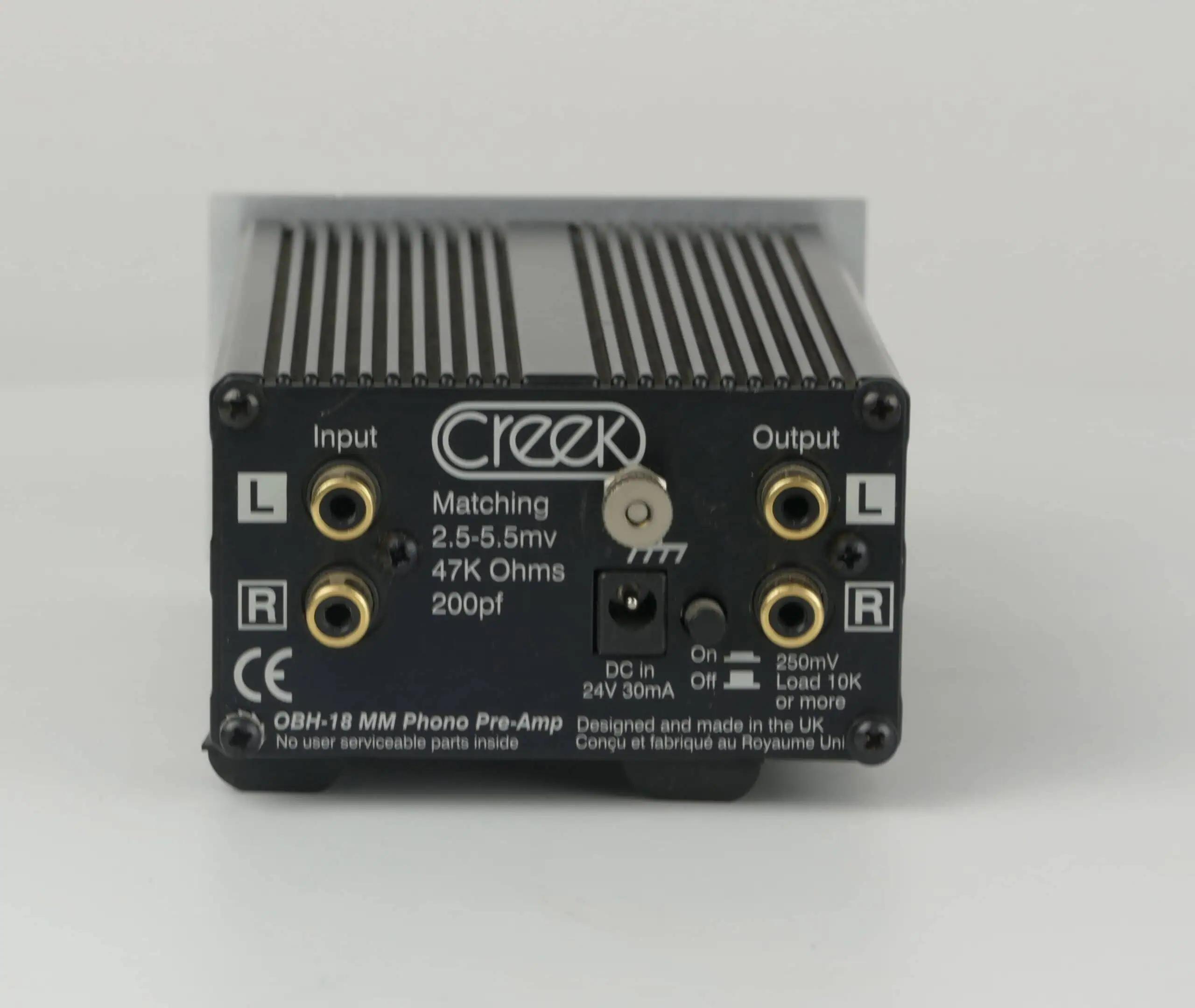

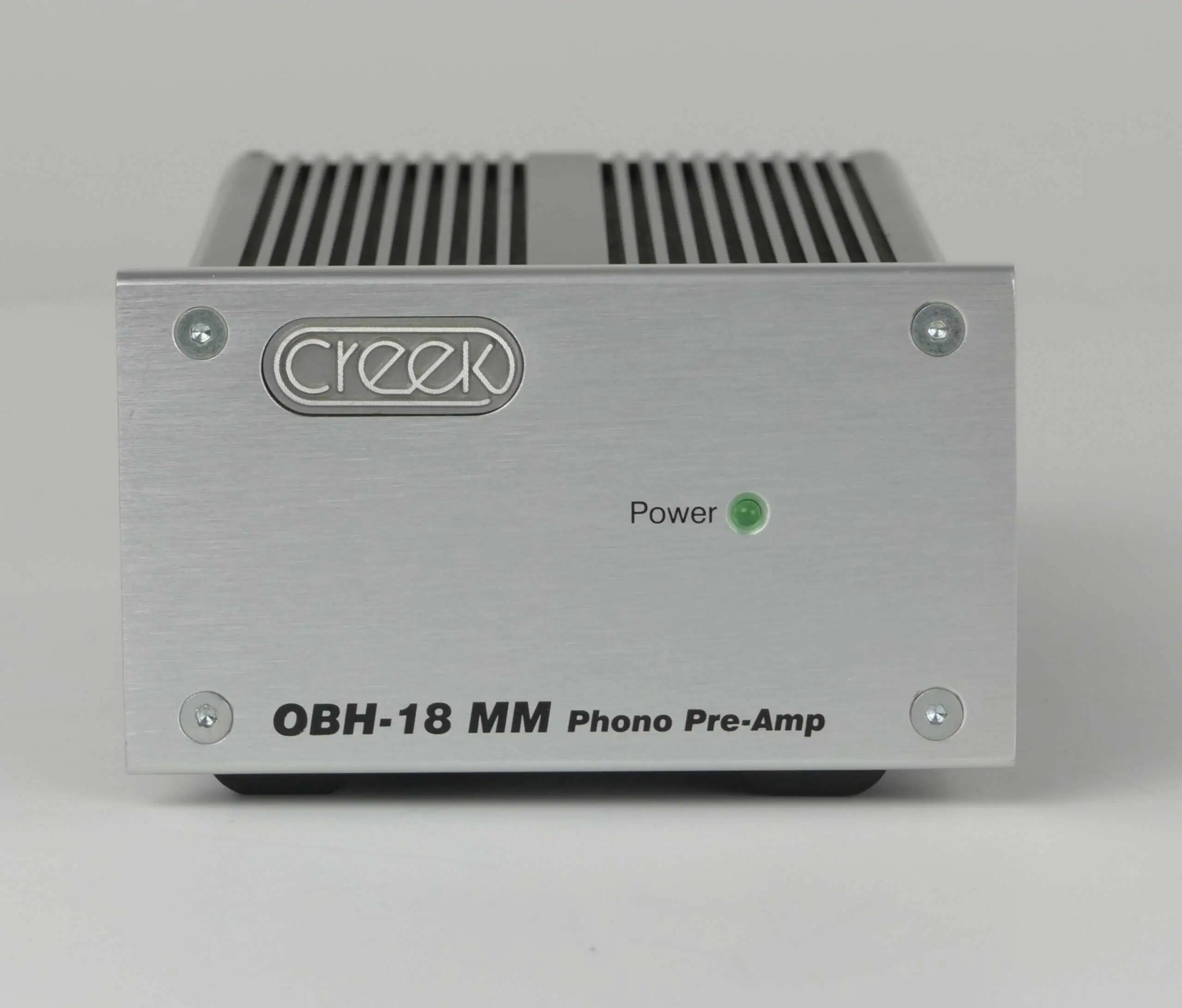

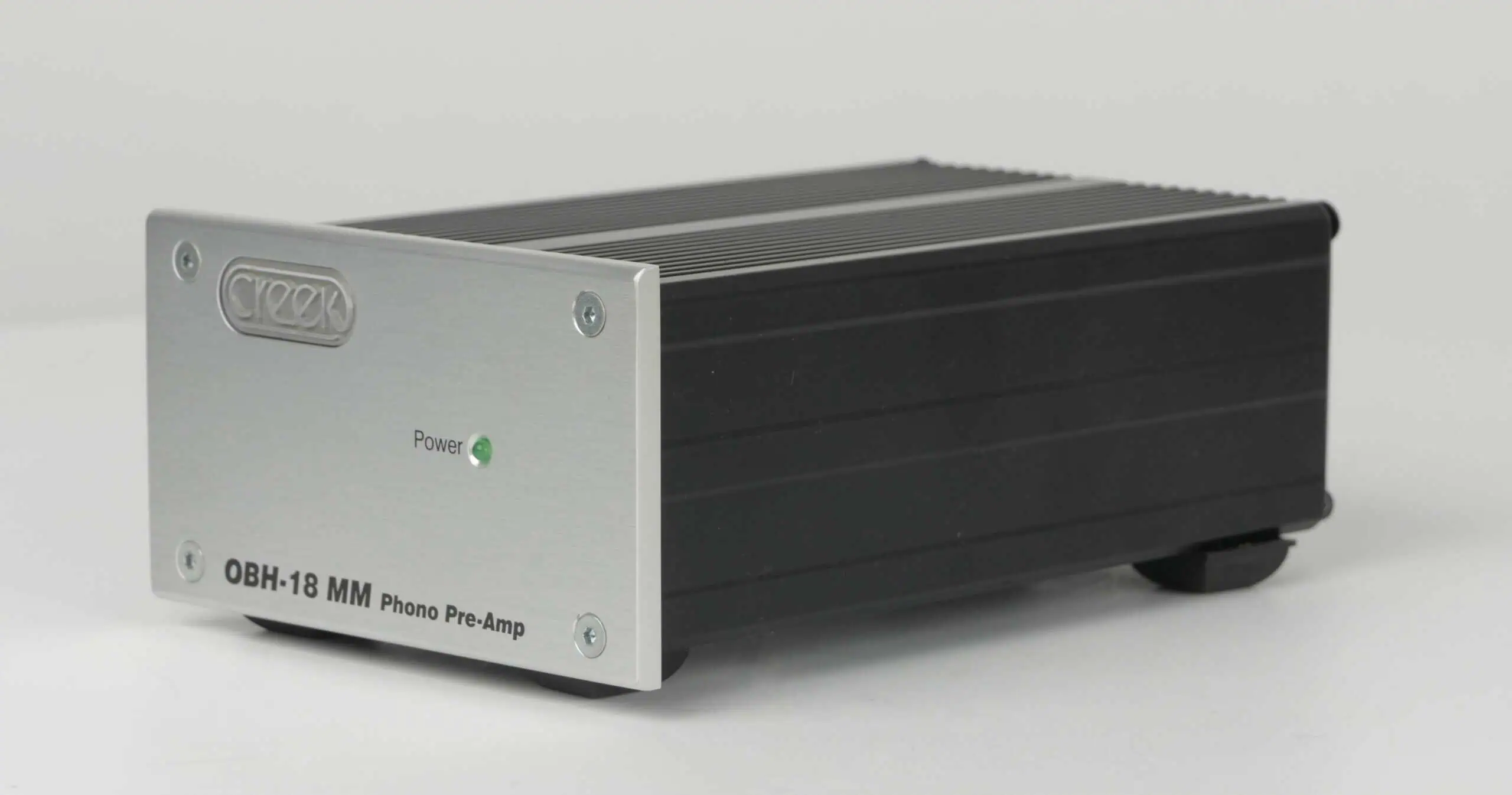

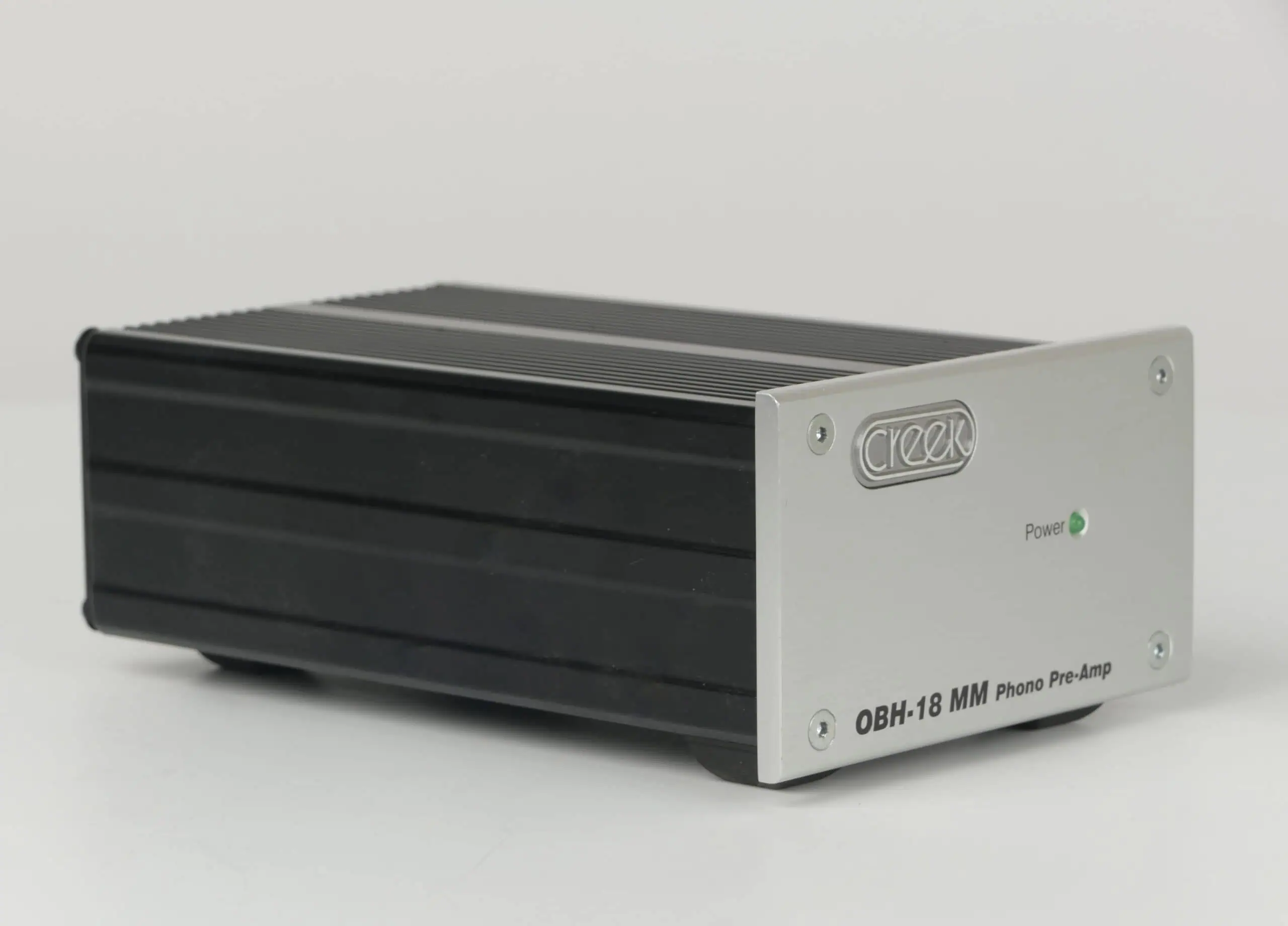

Product: Creek OBH-18MM Phono Preamp
Color: Silver front panel, black housing

Product description

The Creek OBH-18 MM is a phono preamplifier that is essential for music lovers who want to preserve and amplify the rich sounds of vinyl.

Cosmetic description

The unit is in beautiful condition with minimal signs of use which are carefully documented in the photos.

Functional notes

The OBH-18 MM not only improves sound quality with its precise RIAA correction, but also comes with the appropriate power supply for optimal performance.

Specifications

• Gain: 37dB
• Frequency response: 20 Hz to 20 kHz +/- 0.25 dB
• Signal to noise ratio: -86 dB
• THD: <0.03%
• RIAA deviation: +/- 0.1%
• Output: 250mV
• Output impedance: < 100 Ohms
• Input sensitivity/impedance: 3.5 mV / 47 kohm
• Overload margin: 22 dB
• Compatible with MM cartridges: 2.5 mV – 5.5 mV output
• Dimensions: 150 x 100 x 66 mm
• Supply voltage: 24V DC 30 mA

Included:

90 days warranty
External power supply unit
