McIntosh MSA5500

Product Details

Product: McIntosh MSA5500 Integrated Streaming Amplifier
Color: Black with blue VU meters and aluminum side panels

Product Description

The MSA5500 is designed as an all-in-one solution for music enthusiasts. With built-in streaming capabilities, the unit supports platforms such as Apple AirPlay 2, Bluetooth 5.0 (including aptX HD and Adaptive), Google Cast, Spotify Connect, and TIDAL Connect. In addition, it is Roon Ready, allowing seamless integration with high-resolution music libraries.

The amplifier features an 8-channel, 32-bit/384kHz Quad Balanced DAC, delivering impressive dynamic range and ultra-low distortion. The USB input supports high-resolution audio formats up to DSD512 and DXD384kHz, while the coaxial and optical inputs handle signals up to 24-bit/192kHz.

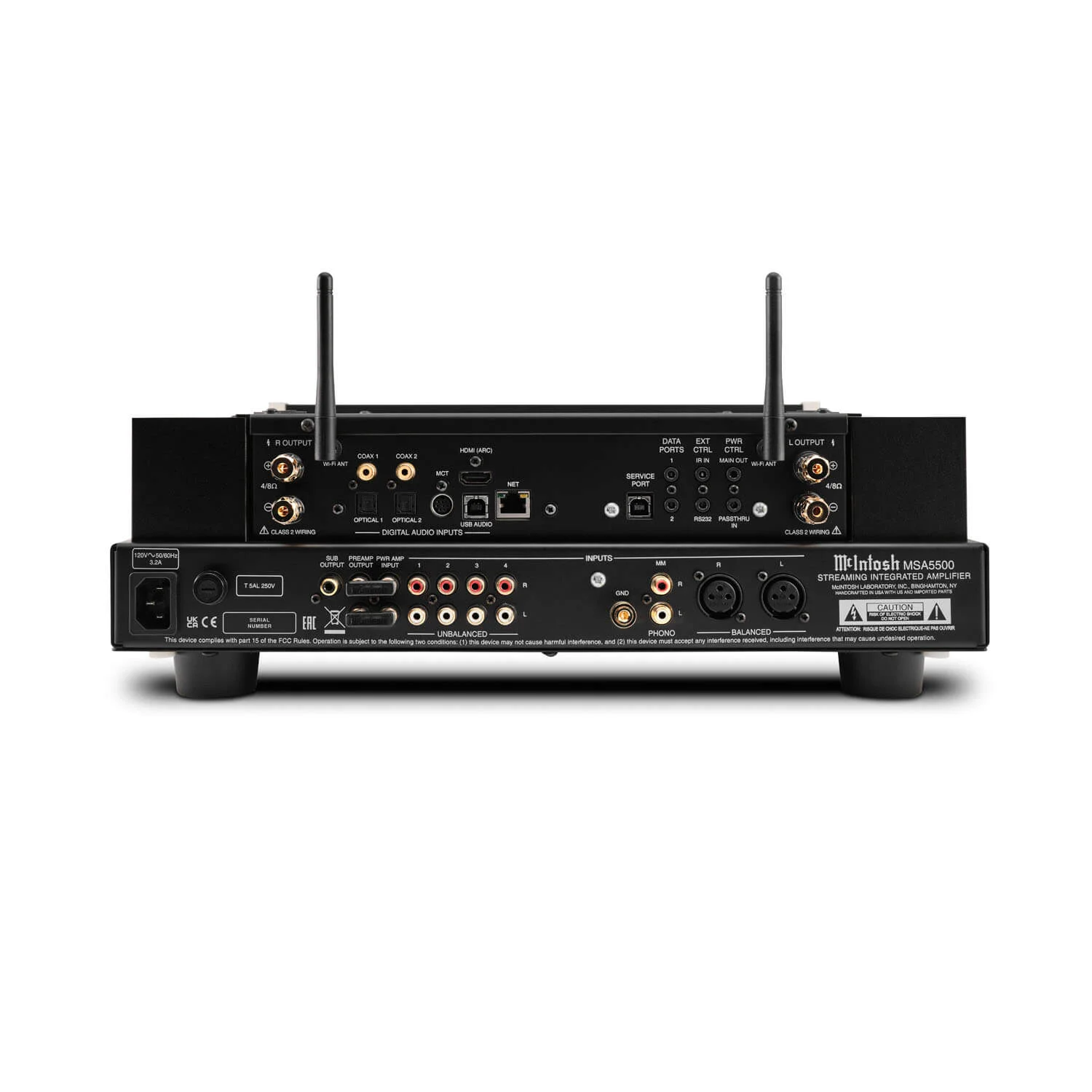

Connectivity and Inputs

Analog Inputs:

• 1 × Balanced XLR

• 4 × Unbalanced RCA

• 1 × Phono input for MM cartridges

Digital Inputs:

• 2 × Coaxial

• 2 × Optical

• 1 × USB-B (asynchronous)

• 1 × HDMI ARC

• 1 × MCT (for McIntosh SACD/CD transports)

Outputs:

• 1 × RCA pre-out

• 1 × Subwoofer output

• 1 × 6.35 mm headphone output with HXD®

Network:

• Wi-Fi 6

• Ethernet

Technical Specifications

• Power Output: 2 × 100 W @ 8 ohms, 2 × 160 W @ 4 ohms

• Frequency Response: 10 Hz – 100 kHz (+0, -3 dB)

• Total Harmonic Distortion: 0.005%

• Signal-to-Noise Ratio:

  • 95 dB (line level)

  • 82 dB (phono)

  • 110 dB (power amp)

• Damping Factor:

  • 200 (8 ohms)

  • 100 (4 ohms)

• Dimensions (W × H × D): 44.5 × 15.2 × 56.5 cm (including antennas)

• Weight: 17.2 kg

Features

• Power Guard®: Prevents overdrive and protects speakers from clipping

• Sentry Monitor™: Safeguards against short circuits and overloads

• Monogrammed Heatsinks™: Efficient thermal management for optimal performance

• Home Theater PassThru: Easy integration into home cinema systems

• Headphone Crossfeed Director (HXD®): Enhanced headphone listening experience

• Power Control: Enables power synchronization with other McIntosh components

The McIntosh MSA5500 combines classic aesthetics with cutting-edge technology, making it an ideal choice for both traditional and digital music lovers.
