McIntosh MA7200

Product details

Product: McIntosh MA7200 Integrated Amplifier
Colour: Black with illuminated blue VU meters and brushed aluminium accents

Introduction
The McIntosh MA7200 is a powerful integrated amplifier that combines the brand’s iconic performance and aesthetics in a robust and versatile design. Delivering 200 watts per channel, the MA7200 provides effortless dynamics and control—regardless of speaker impedance—thanks to McIntosh’s patented Autoformer technology. It serves as the beating heart of any high-end stereo setup.

Equipped with the modular DA1 digital audio module, the MA7200 features an 8-channel, 32-bit/384kHz DAC in a Quad Balanced configuration. This module supports high-resolution audio formats such as DSD256 and DXD 384kHz via USB, and up to 24-bit/192kHz via coaxial and optical inputs. The DA1 is also future-proof—it can be replaced with newer modules like the optional DA2 to keep pace with evolving digital audio technologies.

Cosmetic description

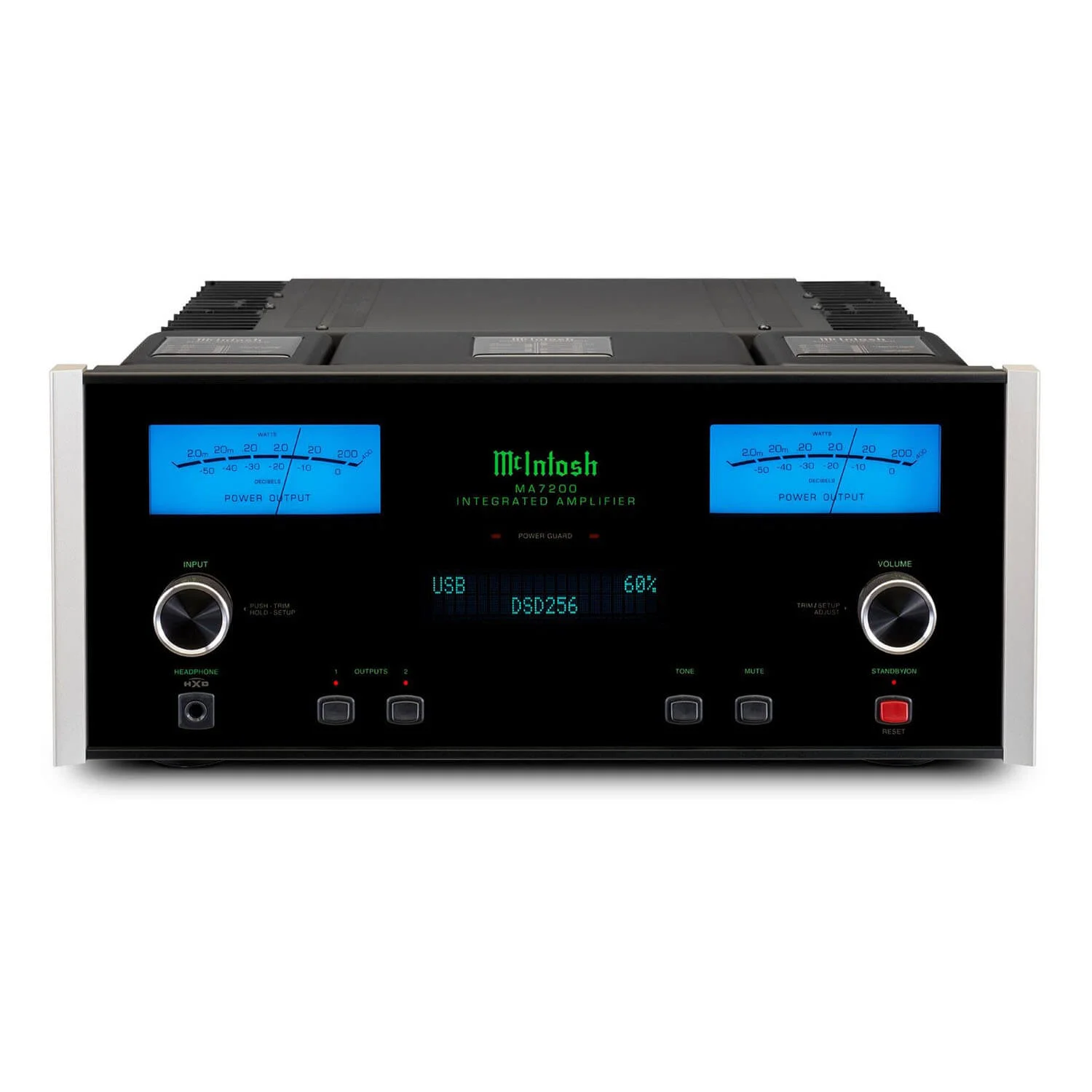

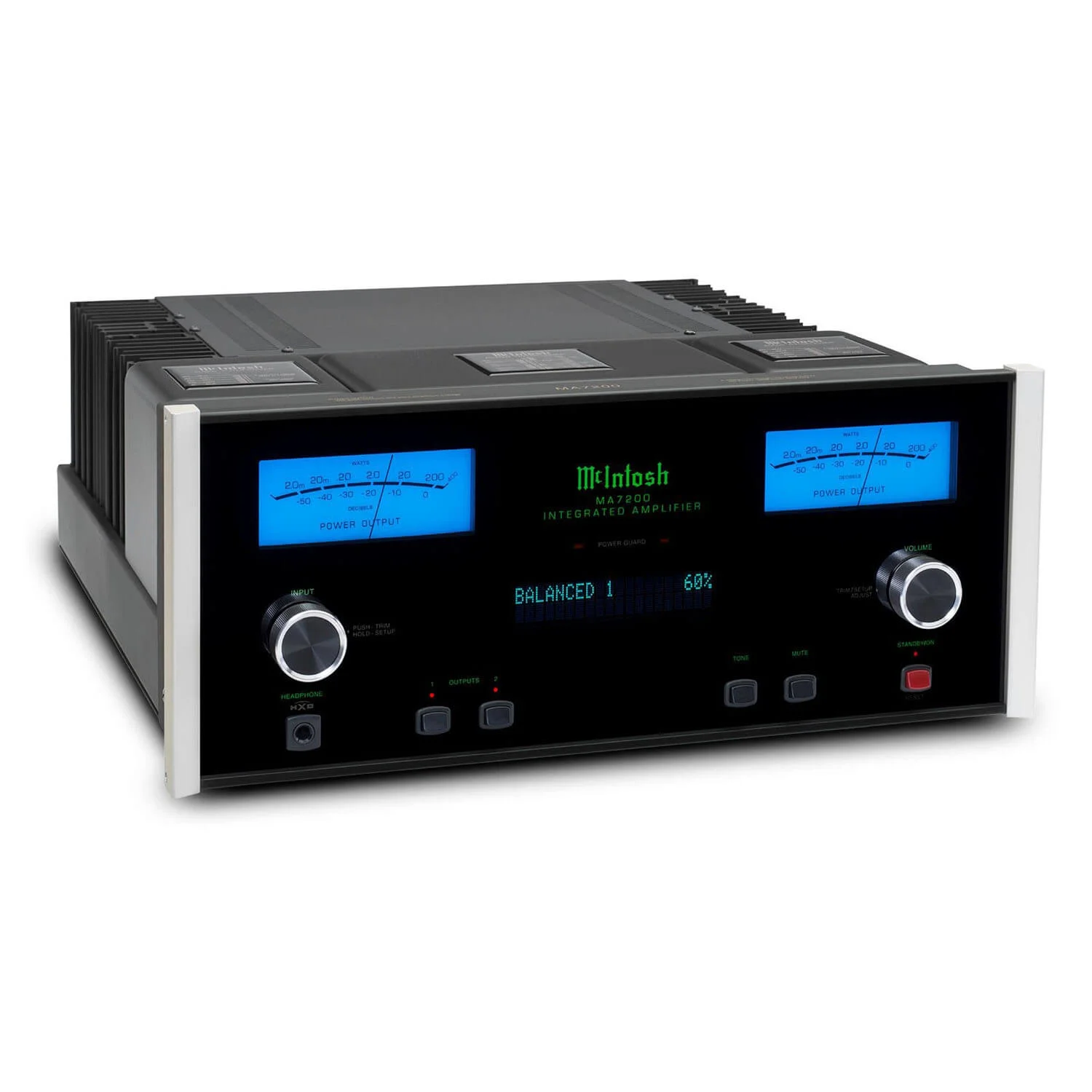

The MA7200 carries the timeless McIntosh design, featuring a black glass front panel, illuminated blue VU meters, and brushed aluminium side panels. The controls are symmetrically arranged for intuitive operation, and the central display clearly indicates source selection and volume. Its solid construction and premium finish reflect the high standards McIntosh is known for.

Functional notes
Output power: 2 x 200 W at 2, 4, or 8 ohms (via Autoformer technology)
Digital module: DA1 with 8-channel, 32-bit/384kHz DAC (Quad Balanced)

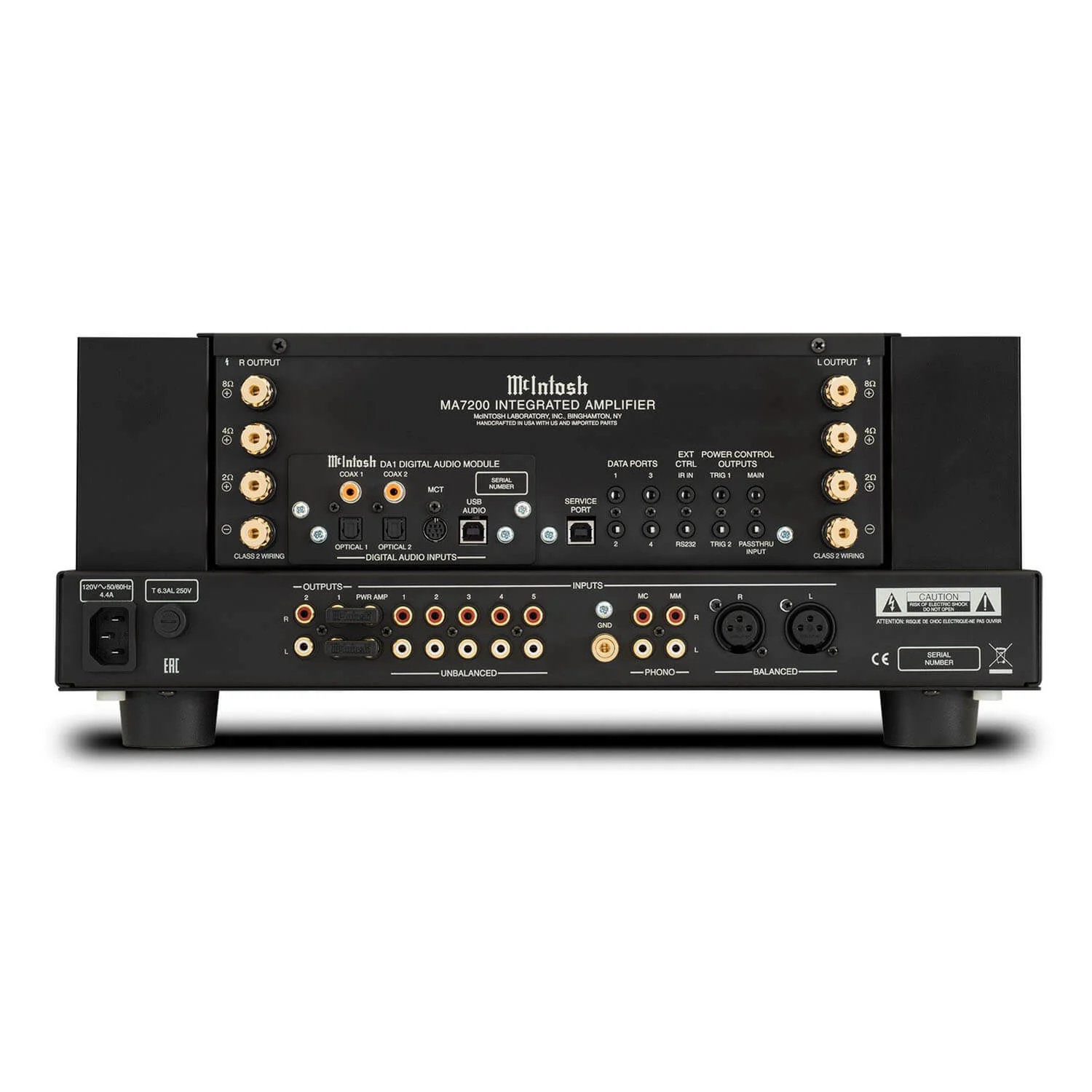

Inputs:
– 8 analogue: 5x RCA, 1x XLR, 1x MM phono, 1x MC phono
– 6 digital: 2x coaxial, 2x optical, 1x USB-B, 1x MCT
– Headphone output: 6.3 mm with Headphone Crossfeed Director (HXD®)

Additional features:
– Power Guard® clipping protection
– Sentry Monitor™ output stage protection
– Home Theater PassThru
– Bass and treble controls
– Monogrammed Heatsinks™ for efficient heat dissipation
– Roon Tested certification

Performance:
Frequency response: 10 Hz – 100 kHz (+0, -3 dB)
Total harmonic distortion: 0.005%
Signal-to-noise ratio: 113 dB (power amp section)
Damping factor: >200

Dimensions: 44.5 cm (W) x 19.4 cm (H) x 55.9 cm (D)
Weight: approx. 34.1 kg
